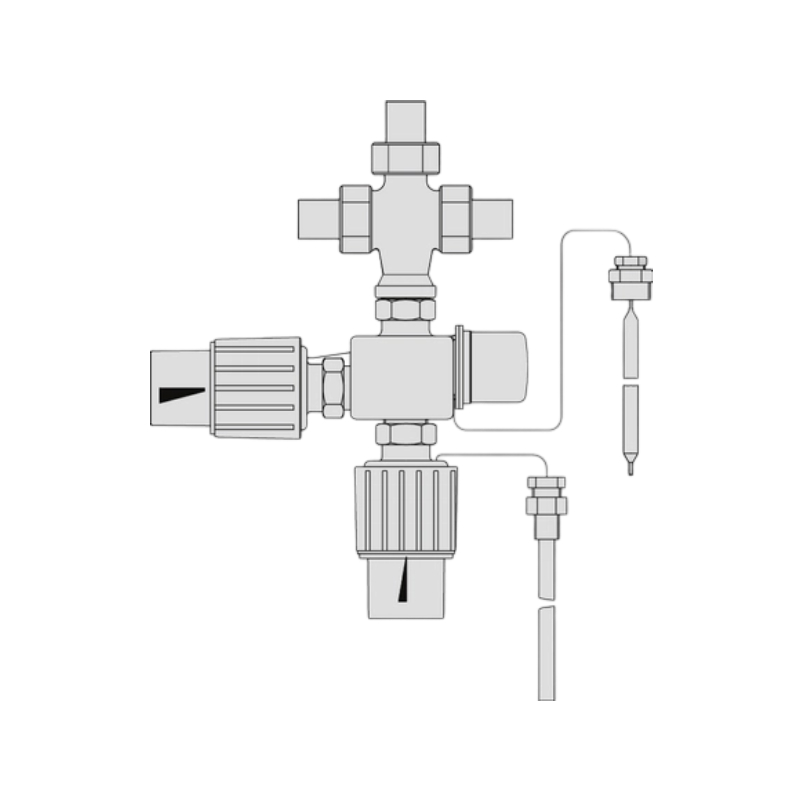

Samson 2433/2430/2403-DIN Self-operated regulators
Samson 2433/2430/2403‑DIN is a DIN‑standard self‑operated safety temperature controller with dual‑thermostat design, needing no auxiliary power. Composed of the Type 2433 globe valve, Type 2430 control thermostat and Type 2403 safety thermostat, it realizes normal temperature regulation and redundant overheat protection. It closes automatically at excessive temperature in line with DIN EN 14597, suitable for water and non‑hazardous liquid heating systems in district heating and industrial applications.
Features
1.Safety temperature limiter
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2433
1.Unbalanced three-way valve
2.Male thread connection
3.Double adapter to connect additional thermostats
4.Manual override
5.Threaded ends
6.Welding ends
7.Flanges
Specification
USAGE
Temperature control
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F
VALVE SIZE
DN 15 to DN 50
PRESSURE RATING
PN 25
FUNCTION
TR + STL
APPLICATION
Mixing/diverting
TEMPERATURE LIMIT
60 to 120 °C / 140 to 248 °F
TEMPERATURE SET POINT
0 to 150 °C / 32 to 302 °F
RESPONSE SPEED
Standard
