Samson 2431/2439/2430-DIN Self-operated regulators
Samson 2431/2439/2430-DIN is a DIN-standard self-operated safety temperature limiter (STL) with dual-thermostat redundant control and fail-safe protection, engineered for liquid-based heating systems and requiring no auxiliary energy source.

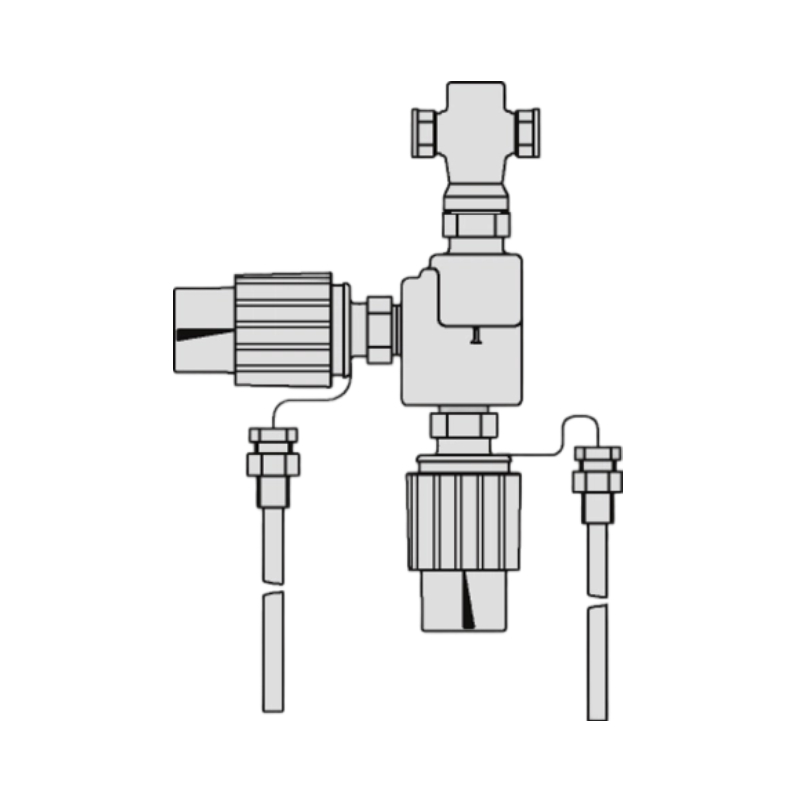

This integrated unit combines three core components: the Type 2431 piston-balanced globe valve, Type 2439 manual-reset safety temperature limiter (STL), and Type 2430 control thermostat. The 2430 control thermostat delivers precise, routine temperature regulation to maintain desired operating conditions, while the 2439 STL acts as a final fail-safe barrier: it automatically closes the valve if temperatures exceed the pre-set critical safety limit, and requires manual reset to restore operation, preventing unplanned reactivation after overheat events.
Features
1.Safety temperature limiter
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2431
1.Globe valve with plug balanced by a piston
2.Double adapter to connect additional thermostats
3.Manual override
4.Insulating section for insulated pipelines or medium temperatures down to –15 °C
5.Version with oil-resistant internal parts
Specification
USAGE
Temperature control
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F
VALVE SIZE
G ½ to G 1
PRESSURE RATING
PN 25
FUNCTION
TR + STL
APPLICATION
Valve closes when the temperature rises (heating)
TEMPERATURE LIMIT
10 to 120 °C / 50 to 248 °F
TEMPERATURE SET POINT
0 to 150 °C / 32 to 302 °F
RESPONSE SPEED
Standard
