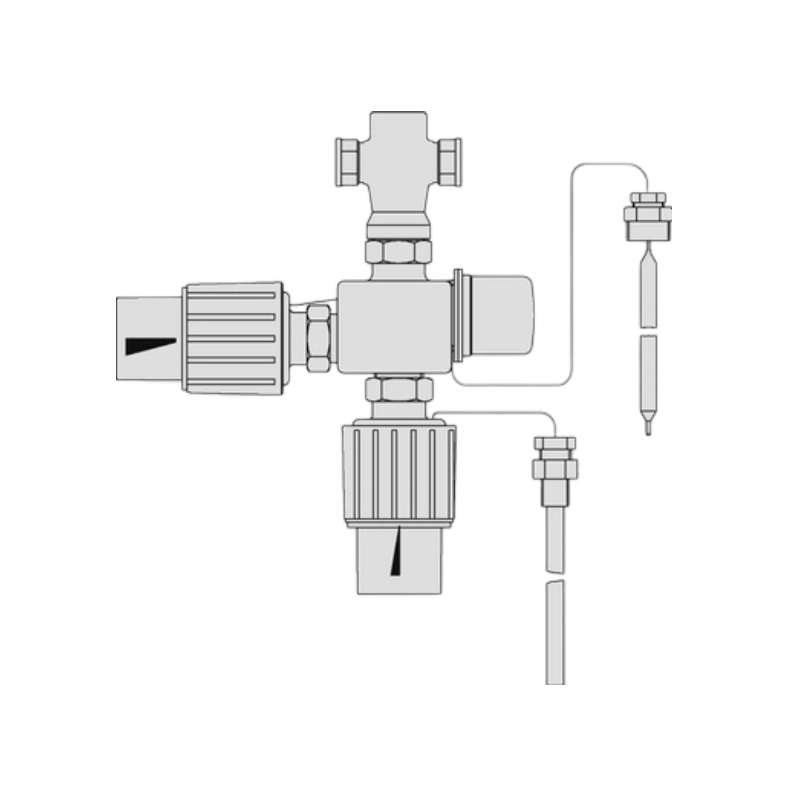

Features

• 1.Safety temperature monitor

• 2.Consisting of valve, control thermostat, and safety thermostat

• 3.Extended safety according to DIN EN 14597

Valve 2431

1.Globe valve with plug balanced by a piston

2.Double adapter to connect additional thermostats

3.Manual override

4.Insulating section for insulated pipelines or medium temperatures down to –15 °C

Specification

USAGE

Temperature control

MEDIUM
Water and other liquids

VERSION
DIN

MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F

VALVE SIZE
G ½ to G 1

PRESSURE RATING
PN 25

FUNCTION

TR + STM

APPLICATION

Valve closes when the temperature rises (heating)

TEMPERATURE LIMIT
60 to 120 °C / 140 to 248 °F

FLOW RATE SET POINT
0 to 150 °C / 32 to 302 °F

RESPONSE SPEED

Standard
