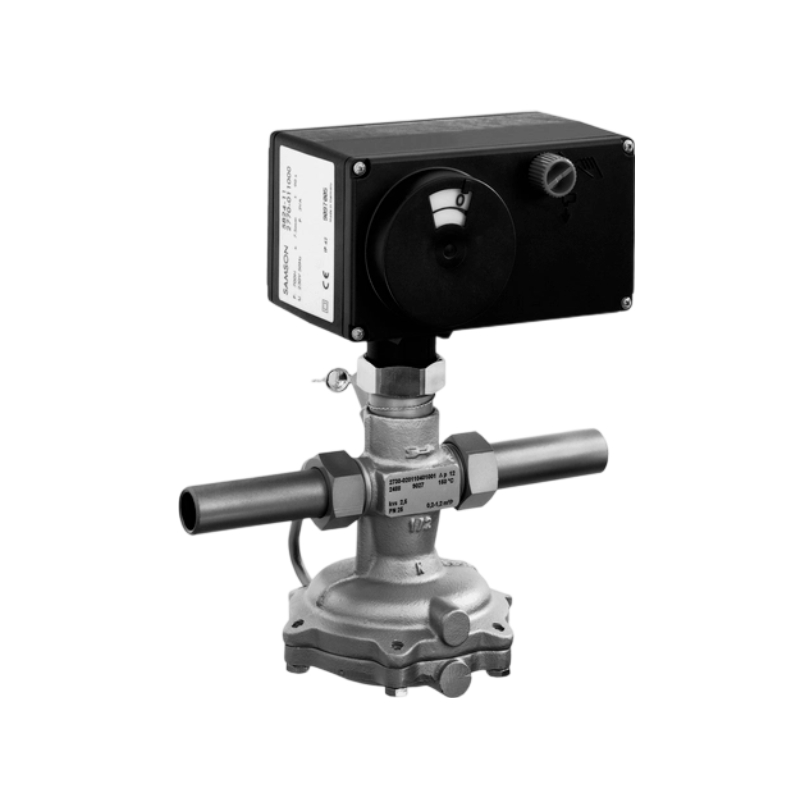

Samson 2488-DIN Self-operated regulators
Samson 2488-DIN is a DIN-standard pressure-independent flow regulator (PICV) featuring a modular design with connection for electric actuator, requiring no auxiliary energy for basic flow control functionality. It operates by automatically maintaining a constant flow rate regardless of pressure fluctuations in the system, combining the functions of a flow regulator, differential pressure controller, and control valve in one compact unit. This self-operated flow control device is ideal for water and other liquid applications, particularly in heating and cooling systems where stable flow rates are critical for energy efficiency and comfort control.
Features
Flow regulator with electric actuator
Valve 2488
Single-seated valve with balanced plug
Compact design
Specification
USAGE
Flow control
MEDIUM
Water and other liquids
VERSION
DIN
MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F
VALVE SIZE
PN 15 to PN 50
PRESSURE RATING
PN 16 to PN 25
FUNCTION
Flow regulator
APPLICATION
Valve closes when the flow rate rises
FLOW RATE SET POINT
0.03 to 15 m³/h / 0.13 to 66 US gal/min
FLOW RATE DP ACROSS RESTRICTION
0.2 bar / 2.9 psi
