Samson 2432/2439/2430-DIN Self-operated regulators

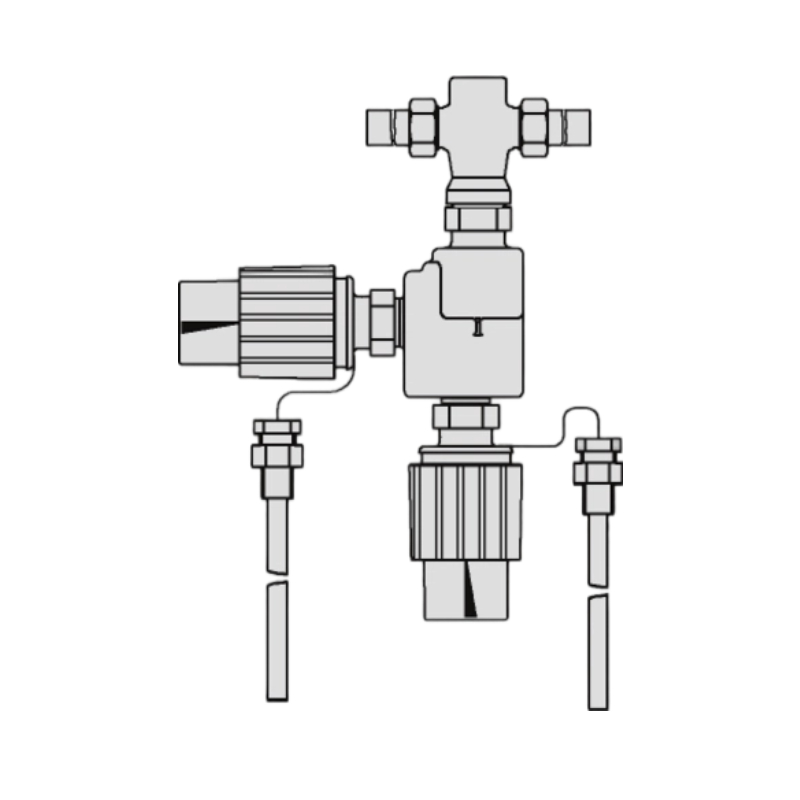

Samson 2432/2439/2430 is a DIN-standard self-operated safety temperature limiter (STL) featuring dual thermostat protection - consisting of the 2432 globe valve (with piston-balanced plug), 2439 K safety thermostat, and 2430 control thermostat - requiring no auxiliary energy source. It operates by utilizing the thermal energy of the controlled medium itself, providing a redundant safety system where both thermostats work together to prevent dangerous overheating: the 2430 control thermostat maintains normal operating temperature, while the 2439 K safety thermostat acts as a final failsafe that closes the valve if temperatures exceed the critical limit. This low-maintenance safety device provides extended safety according to DIN EN 14597, making it suitable for water, oil, and other liquid heating systems.

Online consultation

Details

Features

1.Safety temperature monitor
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2432
Globe valve with plug balanced by a piston
With connection nuts and welding ends

Valve 2432

Double adapter to connect additional thermostats

Manual override

Insulating section for insulated pipelines or medium temperatures down to –15 °C

Specification

USAGE

Temperature control

MEDIUM
Water and other liquids

VERSION
DIN

MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F

VALVE SIZE
PN 15 to PN 50

PRESSURE RATING
PN 25

FUNCTION

Safety temperature limiter (STL)＋TR

APPLICATION

Valve closes when the temperature rises (heating)

TEMPERATURE LIMIT
0 to 150 °C / 32 to 302 °F

RESPONSE POINT

Standard
