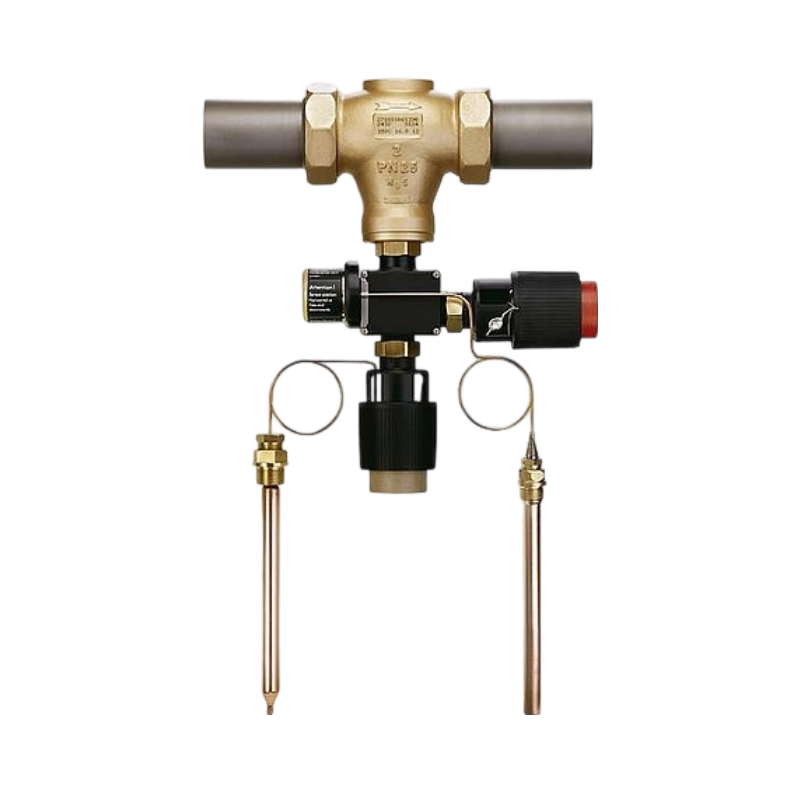

Samson 2432/2430/2403-DIN Self-operated regulators

Samson 2432/2430/2403 is a DIN-standard self-operated safety temperature monitor (STM) consisting of the 2432 globe valve (with piston-balanced plug) and 2403 safety thermostat, requiring no auxiliary energy source. It operates by utilizing the thermal energy of the controlled medium itself, automatically closing when the temperature rises (ideal for heating applications) to prevent overheating, and opening when the temperature drops back to the set point. This low-maintenance safety device provides extended safety according to DIN EN 14597, making it suitable for water and other liquid heating systems.

Online consultation

Details

Features

1.Safety temperature monitor
2.Consisting of valve and safety thermostat
3.Extended safety according to DIN EN 14597
Valve 2432
Globe valve with plug balanced by a piston
With connection nuts and welding ends

Valve 2432

Double adapter to connect additional thermostats

Manual override

Insulating section for insulated pipelines or medium temperatures down to –15 °C

Specification

USAGE

Temperature control

MEDIUM
Water and other liquids

VERSION
DIN

MEDIUM TEMPERATURE
2 to 150 °C / 35.6 to 302 °F

VALVE SIZE
PN 15 to PN 50

PRESSURE RATING
PN 25

FUNCTION

Safety temperature monitor (STM)+ TR

APPLICATION

Valve closes when the temperature rises (heating)

TEMPERATURE LIMIT
60 to 120 °C / 140 to 248 °F
