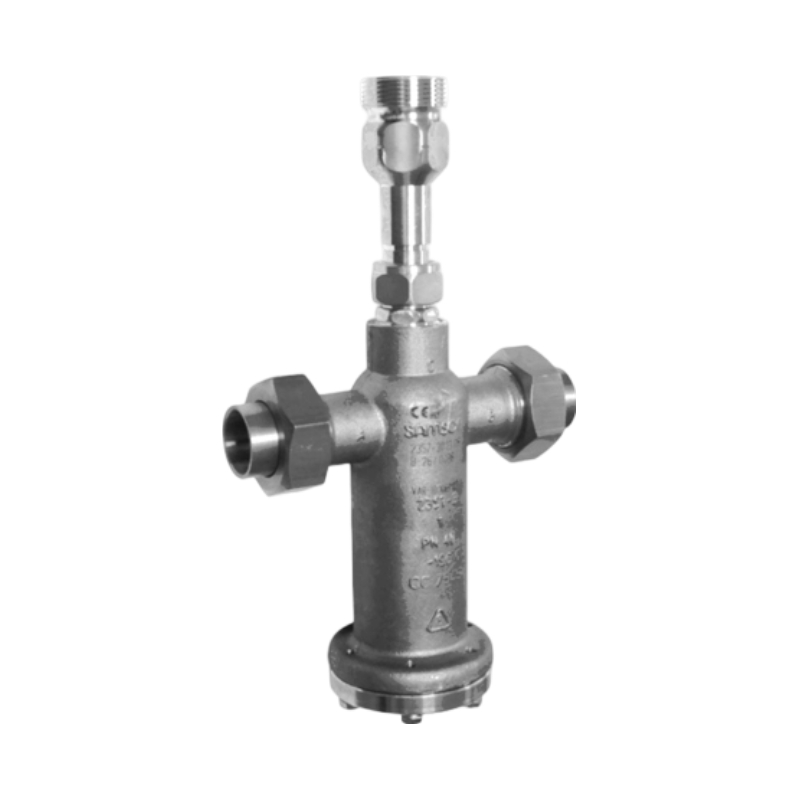

Samson 2357-3-DIN Self-operated regulators
Samson 2357-3 is a DIN-standard self-operated pressure build-up regulator with integrated safety and pressure relief functions, designed as a three-port (A, B, C) valve requiring no auxiliary energy source. It operates by utilizing the energy of the controlled medium itself, closing when downstream pressure reaches the set point and opening when upstream pressure rises to maintain precise pressure control. The valve features dual safety mechanisms: it automatically opens at 5-12 bar above the set point for fail-safe overpressure protection and provides a 0.5 bar above set point pressure relief function to safeguard the pressure chamber downstream of port B.
Features
1.Pressure regulator
2.Consisting of valve with three ports, spring-loaded bellows, and set point adjuster
3.Convenient set point adjustment
4.Rugged design and low overall height
5.EC type examination according to PED
6.Extended min. temperature range with steel steel body and liquids down to –200 °C
7.Suitable for hydrogen
Specification
USAGE
Pressure control
MEDIUM
Cryogenic gases
Air and gases
Liquids
VERSION
DIN
MEDIUM TEMPERATURE
-200 to 200 °C / -328 to 392 °F
VALVE SIZE
G ¾ A
PRESSURE RATING
PN 40
FUNCTION
Pressure build-up regulator
Excess pressure valve
APPLICATION
Valve closes when the downstream pressure rises
The valve opens when the upstream pressure rises
