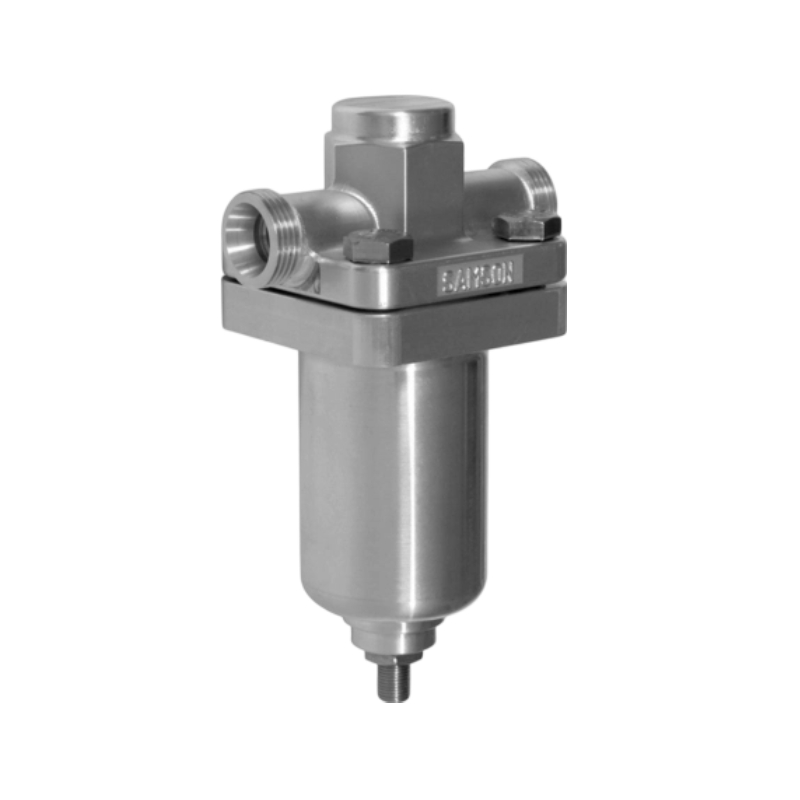

Samson 2357-11 - DIN Self-operated regulators
Samson 2357-11 is a DIN-standard self-operated pressure build-up regulator/pressure reducing valve with an integrated safety function, designed as a straight-through single-seat valve requiring no auxiliary energy source. It operates by utilizing the energy of the controlled medium itself, opening when upstream pressure drops and closing when downstream pressure rises, maintaining precise pressure control while automatically opening at 5 bar above the set point for overpressure protection.
Features
1.Pressure regulator
2.Consisting of valve, operating diaphragm, and set point adjuster
3.Free of oil and grease
4.EC type examination according to PED5.
5.Extended min. temperature range with steel steel body and liquids down to –200 °C
6.Suitable for flammable gases
Specification
USAGE
Pressure control
MEDIUM
Cryogenic gases
Air and gases
Liquids
VERSION
DIN
MEDIUM TEMPERATURE
-200 to 200 °C / -328 to 392 °F
VALVE SIZE
G ¾ A
PRESSURE RATING
PN 63
FUNCTION
Pressure reducing valve
Pressure build-up regulator
APPLICATION
Valve opens when the upstream pressure drops
Valve closes when the downstream pressure rises
