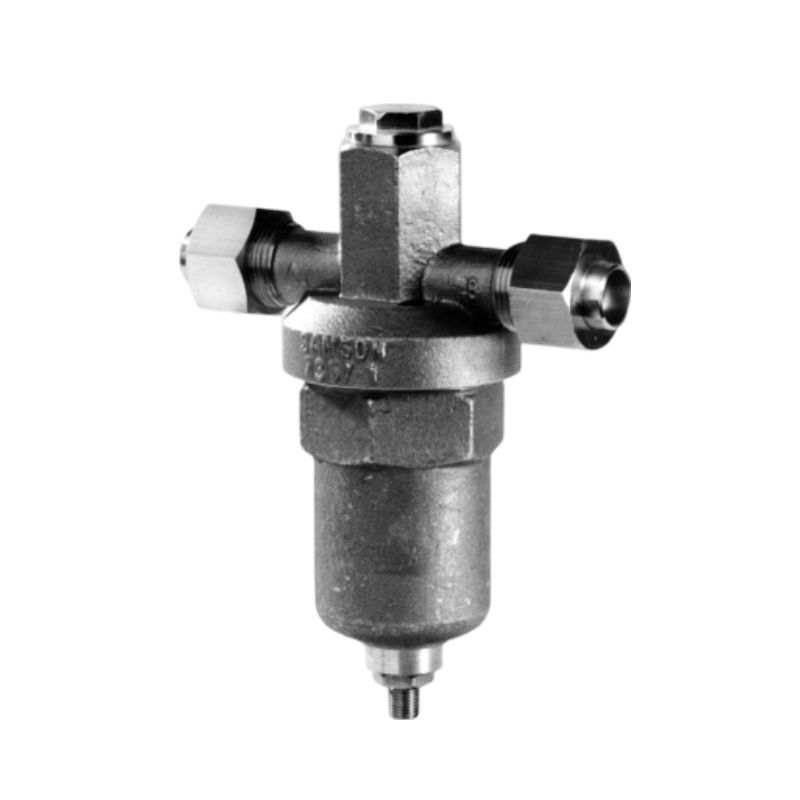

Samson 2357-1 - DIN Self-operated regulators
Samson 2357-1 is a DIN-standard self-operated pressure build-up regulator (also functioning as a pressure reducing valve) designed as a globe valve with a compact, rugged construction requiring no auxiliary energy source. It operates by utilizing the energy of the controlled medium itself, opening when upstream pressure drops and closing when downstream pressure rises, maintaining precise pressure control without external power supplies. Specifically engineered for cryogenic applications (temperatures down to -196°C), this low-maintenance proportional regulator also excels with gases, liquids, and vapors under various industrial operating conditions, featuring a wide set point range and convenient adjustment capabilities. The unit comes with G ¾ A inlet/outlet connections, mineral oil and grease-free design, and is cleaned and packed for oxygen service, making it suitable for diverse industrial applications including flammable gases .
Features
1.Pressure reducing valve with globe valve
2.Connections on inlet/outlet G ¾ A
3.Free of mineral oil and grease
4.Rugged design and low overall height
5.Suitable for flammable gases
Specification
USAGE
Pressure control
MEDIUM
Cryogenic gases
Air and gases
Liquids
VERSION
DIN
MEDIUM TEMPERATURE
-200 to 200 °C / -328 to 392 °F
VALVE SIZE
G ¾ A
PRESSURE RATING
PN 40 to PN 50
FUNCTION
Pressure reducing valve
Pressure build-up regulator
APPLICATION
Valve opens when the upstream pressure drops
Valve closes when the downstream pressure rises
