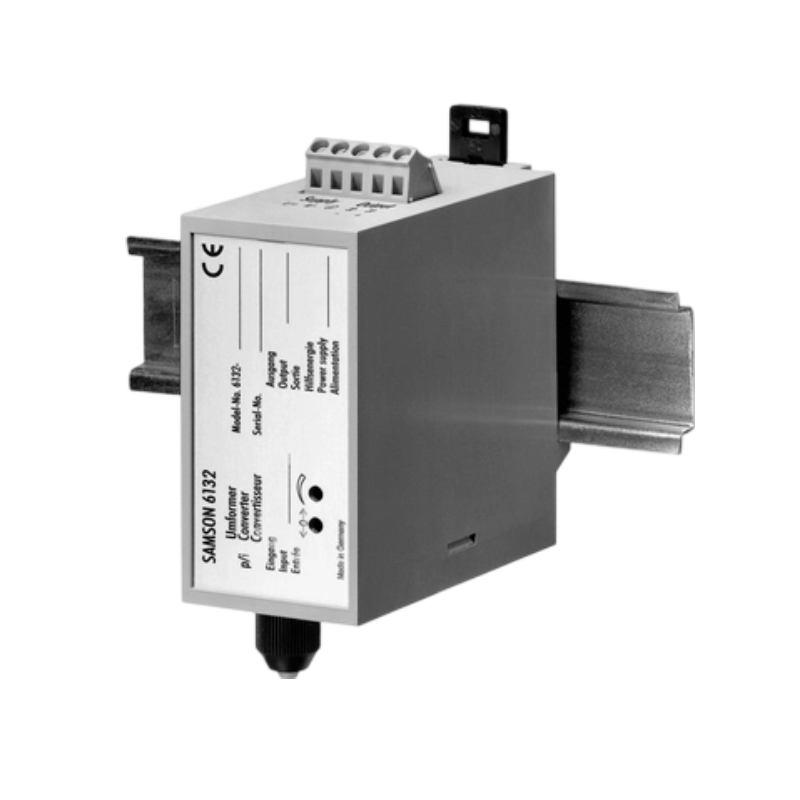

Samson 6132 i/p signal converters
Samson 6132 is a four-wire P/I (Pneumatic-to-Electric) signal converter designed as a rail-mounting unit for top hat rails, converting standard 0.2–1 bar (3–15 psi) pneumatic input signals into proportional electric output signals (4–20 mA, 0–20 mA, 0–10 V, or 2–10 V). It serves as a reliable interface between pneumatic measurement devices and electronic control systems (PLC/DCS), enabling seamless integration in industrial process automation applications. Featuring a capacitive pressure transducer in the input stage, it delivers excellent dynamic response and low hysteresis for precise signal conversion.
Features
1.p/i converter
2.Low hysteresis
3.Good dynamic response due to capacitive pressure transducer in the input
Specification
USAGE
Pneumatic to electric signal
INPUT SIGNAL
0.2 to 1 bar
OUTPUT SIGNAL
0 to 20 mA
4 to 20 mA
0 to 10 V
2 to 10 V
EXPLOSION PROTECTION
Without certification
HOUSING STYLE
Rail-mounting unit
