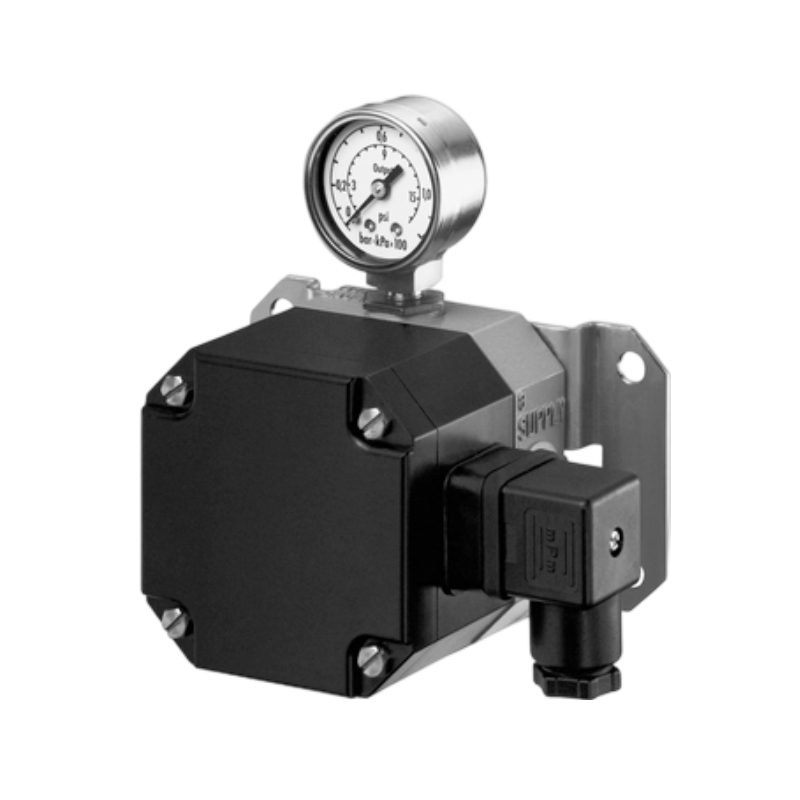

Samson 6126 i/p signal converters
The Samson 6126 Series is a compact, rugged electropneumatic (I/P) signal converter designed for seamless integration between electronic control systems and pneumatic actuation components. Engineered with a space-saving screw-on body featuring G ¼ thread and robust IP 56/66 (NEMA 4) protection, this converter transforms load-independent (0)4-20 mA DC current signals or (0)2-10 V voltage signals into proportional pneumatic output pressures ranging from 0.2 to 1 bar (standard) up to 5 bar (customizable). Its lightweight design and excellent dynamic response make it ideal for both indoor control cabinets and outdoor industrial environments requiring reliable signal conversion with minimal footprint.
Features
1.i/p converter
2.Small dimensions, low weight, and rugged housing
3.Excellent dynamic response
4.Central venting
5.Small effect of vibration
Specification
USAGE
Electric to pneumatic signal
INPUT SIGNAL
0 to 20 mA
4 to 20 mA
0 to 10 V
2 to 10 V
OUTPUT SIGNAL
0.2 to 1 bar
Other
EXPLOSION PROTECTION
Without certification
HOUSING STYLE
Field unit
