Features

• 1.Ultra-High Pressure Rating: Handles operating pressures from 0 to 400 bar (0—5，800 psi) depending on operator type for demanding hydraulic control applications

• 2.Metal-to-Metal Seated Design: 316 stainless steel seat ensures leak-tight shut-off even at max pressure, reducing fluid loss and reducing system efficiency

• 3.Balanced Internal Piloting: Allows low-powered solenoid coils (3.5 W standard, 8 W option) to switch reliably at extreme pressures, reducing energy consumption in remote installations

• 4.316L Stainless Steel Construction: Exceptional corrosion resistance for harsh chemical, marine, and offshore environments, with wetted parts in various grades of stainless steel/ceramic/aluminum bronze

• 5.Dual-Rated Explosion-Proof Certification: ATEX/IECEx II 2G EExd IIC T6 (-50°C ≤ Ta ≤ +60°C) and T4 (-50°C ≤ Ta ≤ +80°C) as standard for Zones 1 & 2, Gas Groups IIA, IIB, IIC

• 6.High Flow Capacity: Nominal flow rate of 200L/min（52.8US gal/min）for large hydraulic circuits requiring substantial fluid transfer

• 7.Modular Mounting Options: O-ring interface enables subplate or manifold mounting for use in local control panels, providing a compact, cost-effective solution for multi-well panels

• 8.Wide Temperature Range: Standard -20°C to +60°C, with low-temperature option available (-50°C to +60°C) for extreme cold environments

• 9.Ingress Protection: IP66/NEMA 4X standard for superior water and dust protection in harsh outdoor installations

• 10.Easy Maintenance: Dismountable via 4 bolts without disturbing pipework, reducing downtime and contamination risks during service

• 11.Filtration Requirement: 10 micron absolute recommended for optimal performance and longevity at extreme pressures

• 12.NACE MR-0175 Compliant: Suitable for sour service applications in the oil and gas industry

•


Associated Products

Midland-ACS Associated Models

Regulators & Solenoid Valves – Cross Reference

1. Regulator Series (Pressure / Filter Regulators)

3500 Series – Standard Regulators

3500 Series: Pressure Regulators

3525 Series: Filter Regulators

3550 Series: Stainless Steel Filter Regulators (316L)

3575 Series: High Flow Filter Regulators

Typical Models:

4PRNSV082A

4FRASV122A

4REGSN121

4500 Series – Flow Regulators

4500 Series: Stainless Steel Flow Regulators

2REGSN122

2FRMSV122A

Other Pressure Control Units:

2PS3SV072

2PS3SL072

2. Solenoid Valve Series

67 Series – Direct Acting 3/2 Solenoid Valves

67 Series: 3/2 Direct Acting Solenoid Valves, 316L, Ex-proof

Typical Models:

DN03‑2221A41K6BA

DN03‑5322A41EBA

70 Series – High Pressure / High Temp Direct Acting Valves

70 Series: 3/2 Direct Acting Solenoid Valves (enhanced version)

1500 Series – Pilot Operated Solenoid Valves

1500 Series: 3/2, 5/2 Pilot Operated Valves, NACE, -50°C to +180°C

1500 Series with Solenoid Pilot

1600 / 1650 / 1750 Series – Pilot Operated Valves

1600 Series: Spring return pilot valves

1650 Series: With manual override

1750 Series: Double coil, high flow pilot valves

Explosion‑proof Solenoid Valves

5325M24‑AM1P4

5325M24PAM1P4

7325M24‑AM1P4

7325M24PAM1P4

8325M21‑SC2B

8325M21‑EC2B

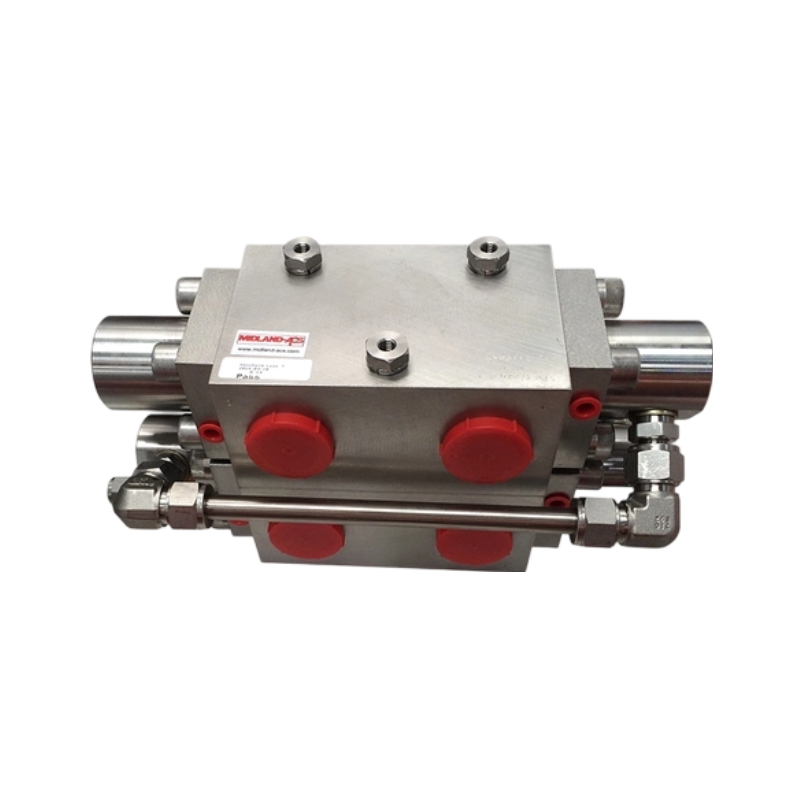

Pictures show
