Features

• 1.316L Stainless Steel Construction: Exceptional corrosion resistance for harsh chemical, marine, and offshore environments, conforming to NACE MR-0175 for sour gas applications

• 2.Direct-Acting 3/2 Valve Design: Provides reliable control of pneumatic actuators with normally closed (NC), normally open (NO), or diverter (universal) functions

• 3.Hazardous Area Certification: II 2 G Exd IIC T6 (-50°C ≤ Ta ≤ +60°C) and optional T4 (-50°C ≤ Ta ≤ +80°C) dual-rated for Zones 1 & 2 (Gas Groups IIA, IIB, IIC)

• 4.High Ingress Protection: IP67 as standard (NEMA 6 equivalent), with IP68 option available for third-party approval

• 5.Compact Port Size: 1/4" NPT (DN10) connections for seamless integration with standard industrial pneumatic circuits

• 6.Dual Operation Modes: Spring return (monostable) and manual override/reset options for flexible system integration and fail-safe requirements

• 7.Low Power Consumption: 3.5W standard operation for energy-efficient performance in remote installations

• 8.Zero Pressure Rated: Operates reliably even at vacuum conditions, ensuring consistent performance across a wide range of applications

• 9.Multiple Seal Options: EPDM and Fluorocarbon (FKM) standard, with custom materials available for specific media compatibility

• 10.SIL Capability: SIL2 capable (in-house assessment) with optional SIL3 third-party approval for safety-critical applications

• 11.Fast Response Time:100-150 ms actuation speed for rapid actuator positioning in time-sensitive processes

•


Associated Products

Midland-ACS Associated Models

Regulators & Solenoid Valves – Cross Reference

1. Regulator Series (Pressure / Filter Regulators)

3500 Series – Standard Regulators

3500 Series: Pressure Regulators

3525 Series: Filter Regulators

3550 Series: Stainless Steel Filter Regulators (316L)

3575 Series: High Flow Filter Regulators

Typical Models:

4PRNSV082A

4FRASV122A

4REGSN121

4500 Series – Flow Regulators

4500 Series: Stainless Steel Flow Regulators

2REGSN122

2FRMSV122A

Other Pressure Control Units:

2PS3SV072

2PS3SL072

2. Solenoid Valve Series

67 Series – Direct Acting 3/2 Solenoid Valves

67 Series: 3/2 Direct Acting Solenoid Valves, 316L, Ex-proof

Typical Models:

DN03‑2221A41K6BA

DN03‑5322A41EBA

70 Series – High Pressure / High Temp Direct Acting Valves

70 Series: 3/2 Direct Acting Solenoid Valves (enhanced version)

1500 Series – Pilot Operated Solenoid Valves

1500 Series: 3/2, 5/2 Pilot Operated Valves, NACE, -50°C to +180°C

1500 Series with Solenoid Pilot

1600 / 1650 / 1750 Series – Pilot Operated Valves

1600 Series: Spring return pilot valves

1650 Series: With manual override

1750 Series: Double coil, high flow pilot valves

Explosion‑proof Solenoid Valves

5325M24‑AM1P4

5325M24PAM1P4

7325M24‑AM1P4

7325M24PAM1P4

8325M21‑SC2B

8325M21‑EC2B

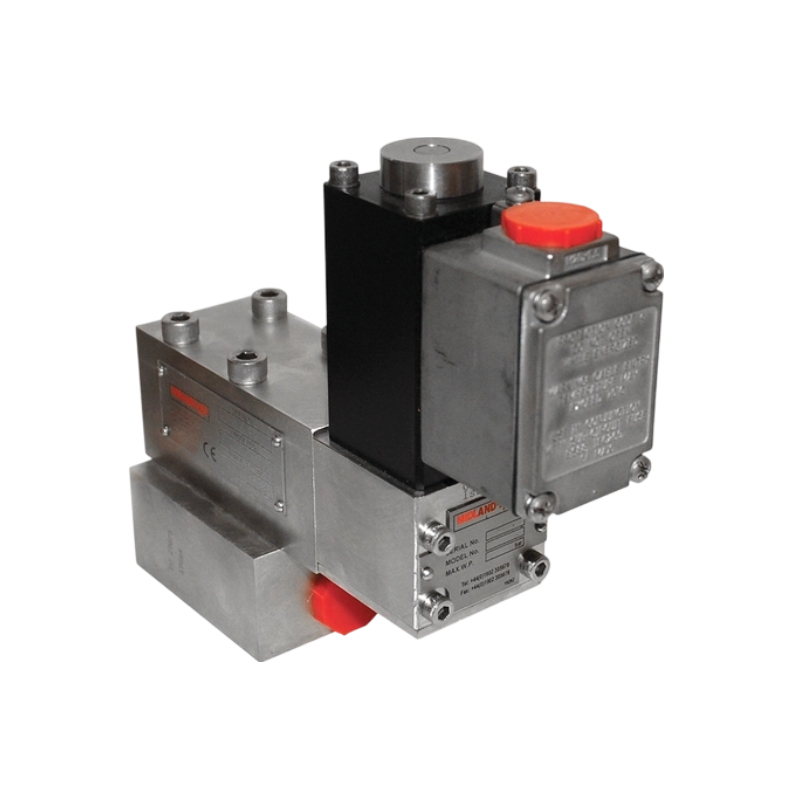

Pictures show
