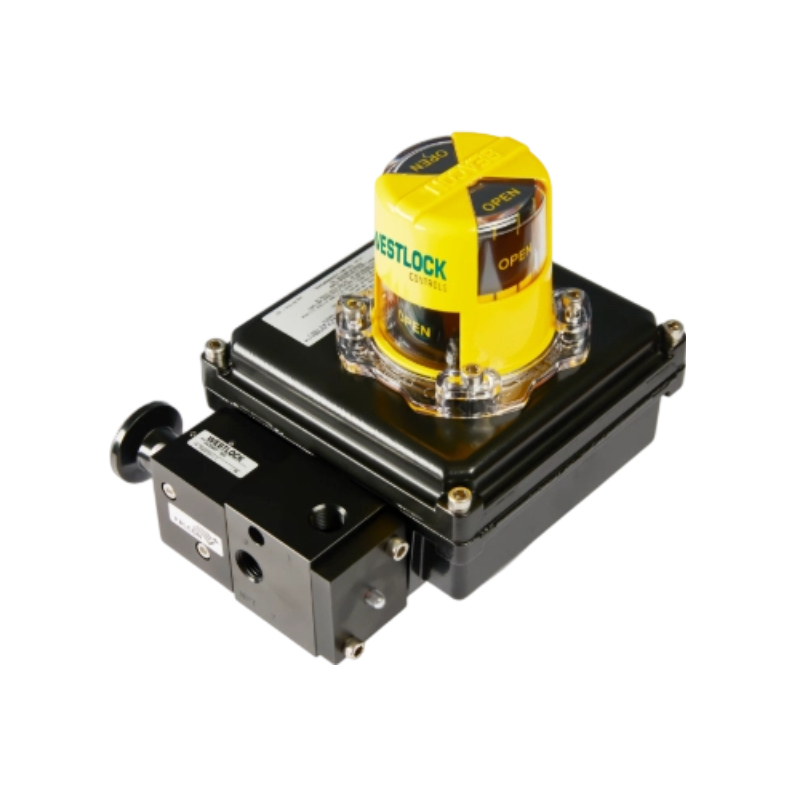

Westlock INTELLIS Intellis 7200/7400/7500/7600/7700 Network Control Monitors

Westlock INTELLIS 7200/7400/7500/7600/7700 Series are Explosionproof/Non-incendive network control monitors, featuring non-contact Hall-effect sensing, integrated solenoid control and multi-protocol networking to deliver automated valve operation and intelligent position feedback for hazardous industrial environments requiring XP/NI protection.

Online consultation
Details

Features

  • 1.Dedicated network modules (PACs) for all major protocols.

  • 2.Simple in-field conversion of network protocols.

  • 3.Multiple housing options (resin, aluminium, stainless steel).

  • 4.Models approved for all hazardous area applications.

  • 5.Control & monitoring for rotary and linear valves.

  • 6.Non-contact position monitoring via Hall effect sensors.

  • 7.Integrated pneumatic actuation control via pre-wired Falcon solenoid valves.

  • 8.On-line predictive and maintenance related diagnostics.

  • 9.Eliminates wiring cost of conventionally hardwired I/O systems.

  • 10.Reduces design engineering man-hours

  • 11.Range of drive shaft options.

  • 12.Visual indication Beacon available in a choice of styles and colors.


Specifications

AGENCY APPROVALS


Area Classification (NEC 500)


Non-incendive

Class I, Division 2, Groups A, B, C & D


Class II & III, Division 2, Groups F & G

Explosionproof

Class I, Division 1, Groups C & D


Class II & III, Division 2, Groups E, F & G

Enclosure standards (ANSI/NEMA 250)


All enclosures

Type 4, 4X

Network Protocols Supported


• AS-interface

Model 7700

• DeviceNet™

Model 7600

• ModBus

Model 7500

• ModBus Direct

Model 7400

• PROFIBUS

Model 7200

Enclosures


Engineered resin


Aluminum
