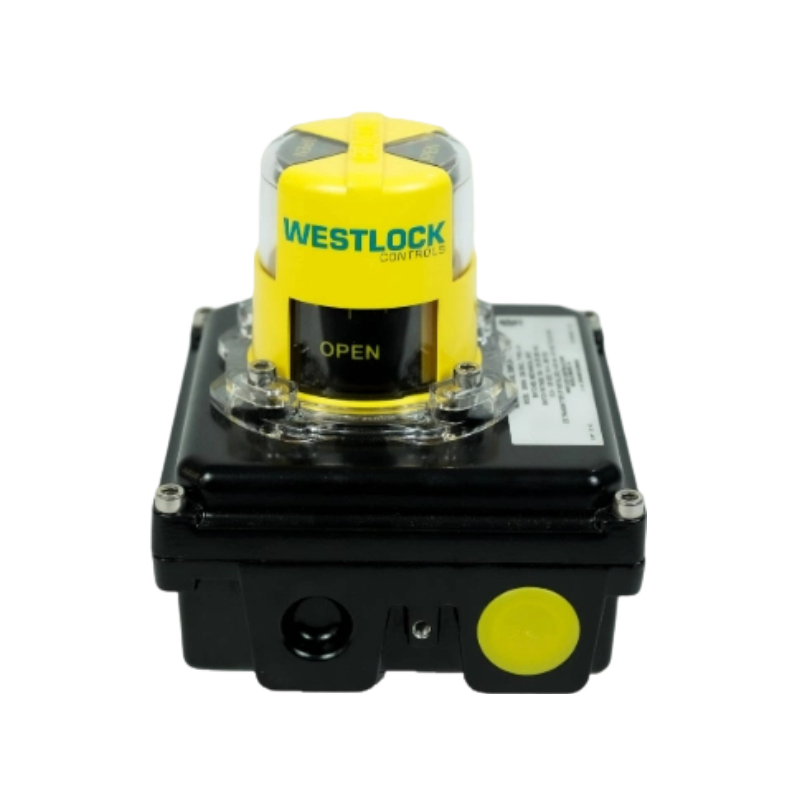

Westlock AccuTrak 2004 Switchboxes
The Westlock AccuTrak 2004 Series is a globally certified explosionproof/flameproof rotary valve position monitor (limit switchbox), engineered to deliver reliable, high-precision valve position feedback for manual and automated rotary valve assemblies in hazardous areas and harsh industrial environments.With full hazardous area approvals including NEC/CEC Class I, Div. 1 Groups C & D, Class II, Div. 1 Groups E, F & G, and ATEX/IECEx Zone 1/21 certifications, paired with IP66/IP67 and NEMA 4/4X/6P ingress protection, it ensures stable long-term operation in dusty, moist, corrosive and high-vibration industrial conditions. This series features Westlock’s proprietary tool-free TouchSet spring-loaded self-locking cam system for ultra-fast on-site calibration, a 360° high-visibility Beacon™ status indicator for instant valve position confirmation, factory pre-wired numbered terminal strips for simplified field wiring, and universal VDI/VDE 3845 NAMUR-compliant mounting for seamless compatibility with mainstream valve actuators. Available in rugged ultra-low copper (≤0.2%) aluminum alloy enclosures with optional 316 stainless steel upgrades, it supports flexible configurations of mechanical switches, inductive proximity sensors and analog position transmitters, making it the trusted cost-effective explosionproof solution for critical process control across oil & gas, chemical & petrochemical, water & wastewater treatment, power generation, pharmaceutical and pulp & paper sectors.
Features
1.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position sensors.
2.Terminal strips are pre-wired and numbered with generous working space for ease of use.
3.Strong durable Beacon™ offers 360° visual indication available in a choice of styles and colors.
4.Additional conduit for easy field wiring and mounting accessories as standard.
5.Standardized mounting pattern for easy adaptation to common bracketry.
6.NAMUR shaft output compliant to VDI/ VDE 3845 available.
7.Analog position transmitter option.
8.Engineered resin enclosure is robust yet lightweight; allows broad operating temperatures and provides exceptional chemical, UV and impact resistance.
9.Aluminum enclosures with ultra-low copper content (0.2% ma+I1ximum) ensure robust performance in corrosive environments.
Specifications
TECHNICAL DATA | |
Approvals: | |
Enclosure standards (NEMA) | Type 4, 4X |
SWITCHES | V3 mechanical, SPDT |
ENCLOSURES | Aluminum |
