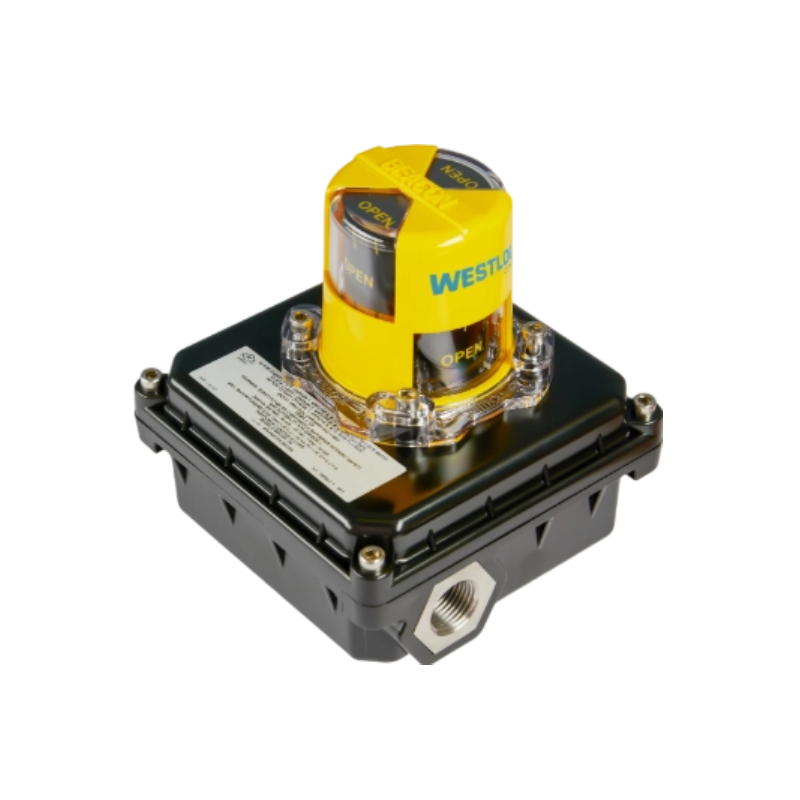

Westlock AccuTrak 9468 MagPAC Series
Westlock AccuTrak 9468 MagPAC Series are certified non-incendive rotary valve position switchboxes, featuring integrated MagPAC sensing technology with LED diagnostics to deliver reliable valve position feedback and simplified compliance for Class I, Division 2 hazardous industrial environments.
Features
1.Magnum switches with rhodium contacts for use with low power I/O’s for longer contact life.
2.MagPAC bifurcated switch pack provides reliable action for low power and non- resistive loads.
3.MagPAC LEDs provide clear status indication of limit switch and solenoid, where applicable.
4.Strong, durable Beacon offers 360° visual indication available in a choice of styles and colors.
5.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position sensors.
6.Terminal strips are pre-wired and numbered with generous working space for ease of use.
7.Additional conduit for easy field wiring and mounting accessories as standard.
8.Analog position transmitter option.
9.Standardized mounting pattern for easy adaptation to common bracketry.
10.Robust stainless steel conduit entry inserts provide protection from excessive torque and reliable grounding.
11.NAMUR shaft output compliant to VDI/ VDE 3845 available.
12.Engineered resin enclosure is robust yet lightweight; allows broad operating temperatures and provides exceptional chemical, UV and impact resistance.
Specifications
AGENCY APPROVALS: | |
Area Classification (NEC 500/CEC) | NI Class I, Division 2, Groups ABCD |
Class II, Division 2, Groups FG | |
Enclosure standards (ANSI/NEMA 250) | Type 4X, 6P, IP67 |
SWITCHES | |
Model 9468 | Magnum SPDT (hermetically sealed proximity type) switches |
MagPAC bifurcated switch pack. | |
ENCLOSURES | |
Model 9468 | Engineered resin |
Stainless steel |
