Westlock AccuTrak SILVER BULLET

Westlock AccuTrak SILVER BULLET Series are certified explosionproof/flameproof linear valve position switchboxes, featuring a universal zero-modification stainless steel mounting system for fast, hassle-free installation and reliable travel feedback in hazardous industrial environments.

Online consultation

Details

Features

1.Available with SPDT or DPDT switches.
2.Standard 6 m lead allows remote mounting if required.
3.Cable marked as appliance wiring material UL758.
4.Rhodium contact option for use with low power I/O’s for longer contact life.
5.Highly resistant to shock and vibration stresses, chemical and environmental exposure.
6.Integrated FieldSet trigger system permits easy calibration of position limits.
7.Standard 4’ (1.2m) lead accommodates mounting to large valve, with optional 20’ (6m) lead for more remote mounting.

Specifications

AGENCY APPROVALS:
AREA CLASSIFICATION (ATEX/IEC)	Ex II 2 G Ex db IIC T* Gb
	Ex II 2 D Ex tb IIIC T* Db IP6X
AREA CLASSIFICATION (NEC/CEC 500)	Class I, Division 1; Groups ABCD
	Class II, Division 1; Groups EFG
ENCLOSURE STANDARDS (IEC)	IP66/67 (with suitable glanding)
	IPx8 (with suitable glanding)
SWITCHES	Magnum, SPDT hermetically sealed switches
	Magnum, DPDT hermetically sealed switches
ENCLOSURE	Stainless steel

Associated Products

AccuTrak 2000/2200 Series

2247ABYN00022AAA-AR1

2247ABYN00022ADZ-AR1

2249ABYN00042AAA-AR2

2249ABYN00042ADZ-AR2

2249SBYN00044ADZ-AR1

2004NBY2A2M0200

2004NBY2A2M02CSU

2007NBY2B2M0200

2007SBY4B2M0400U

AccuTrak 2600 Series

2645SBYN00022FAN-AR2

2645BYK00022FAN-00

2645BYCS22AD000

2646BYN00022ADZ-AR1

2647ABYN00022FAN-AR1

2647SBYN00022AAA-AR1

2647SBYN00022AAA-AR2

2649ABYN00022AAA-AR2

2649ABYN00022ADZ-AR2

2649ABYN00042ADZ-AR2

2649SBYN00022AAA-AR1

2649SBYN-CCJSV-01

Quantum 3000/3600 Series

3045RBYN000022AAA-AR1

3049SBYN00022AAA-AR1

3345RBYN0CS22FAN-AR1

3347ABYN00022ADZ-AR1

3347ABYN00022FAN-AR1

3347RBYN0CS22FAN-AR1

3347-S-BY-S-000-42FAN-AR1

3600NCMBY2M6XSO2600

Other Common Models

1040NBY2A2M0200

711NBY1A2M0900I2700U

811NBY2M9FIO5700UK

722A-BY-M9-FIO-4300-MO

316SB-STM-020-AAA

Pictures show

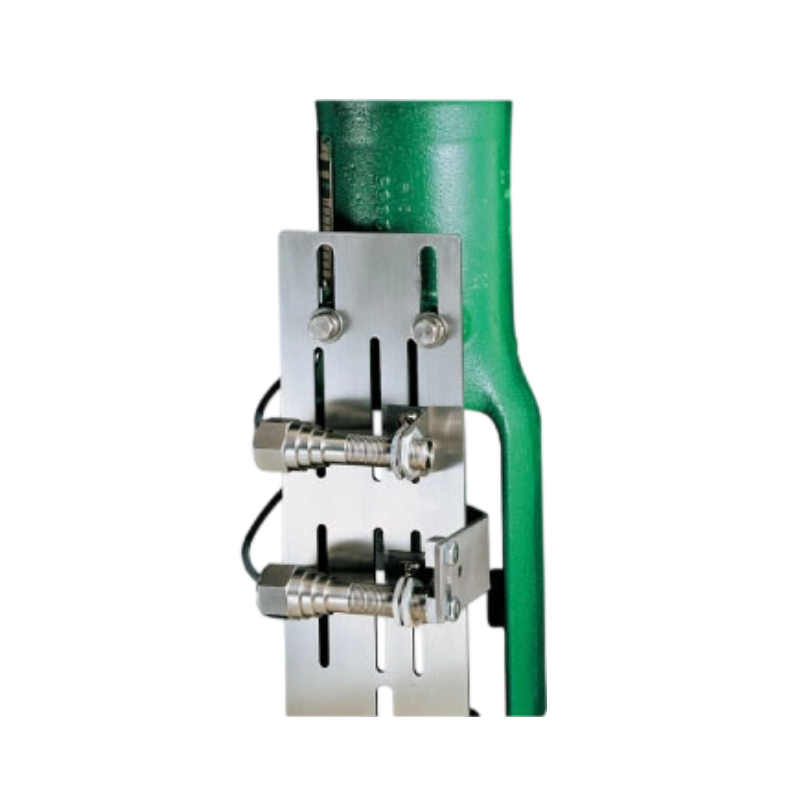

Westlock AccuTrak SILVER BULLET
