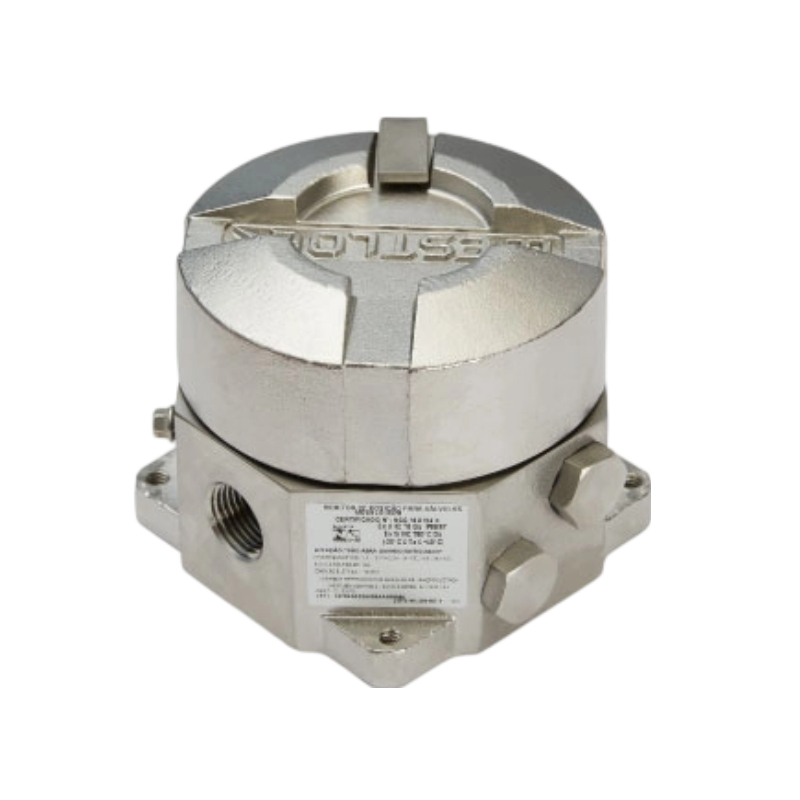

Westlock AccuTrak 3479 Switchboxes Explosionproof/Flameproof

The Westlock AccuTrak 3479 Series is a globally certified explosionproof/flameproof linear valve position monitor (switchbox), purpose-built to deliver consistent, accurate travel position feedback for linear control valves, knife gate valves and other linear valve assemblies in hazardous industrial environments.

Online consultation
Details

Features

  • 1.Magnum limit switches with rhodium contacts recommended for use with low power I/O’s for longer contact life.

  • 2.Factory pre-wired Magnums provide labor savings for position sensing of smaller valves.

  • 3.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.

  • 4.Conduit entries and numbered terminal strip for convenient integration of a solenoid valve.

  • 5.Easy back-wiring of 316 Silver Bullet sensors to accommodate position sensing of large valves.

  • 6.Triggering bolts included.

  • 7.Optional OSHA compliant, adjustable triggering system available in Delrin® or stainless steel.


Specifications

AGENCY APPROVALS:


Area Classification (NEC/CEC 500)


Without Eliminator Conduit Option:

Class I, Div 2, Groups ABCD


Class II, Div 1, Groups EFG

With Eliminator Conduit Option:

Class I, Div 1, Groups BCD


Class II, Div 1, Groups EFG

Enclosure standards (ANSI/NEMA 250)


All enclosures

Type 4

SWITCHES


Model 3479

Magnum (hermetically sealed proximity type) switches

ENCLOSURES


Model 3479

Aluminum


316 Stainless Steel
