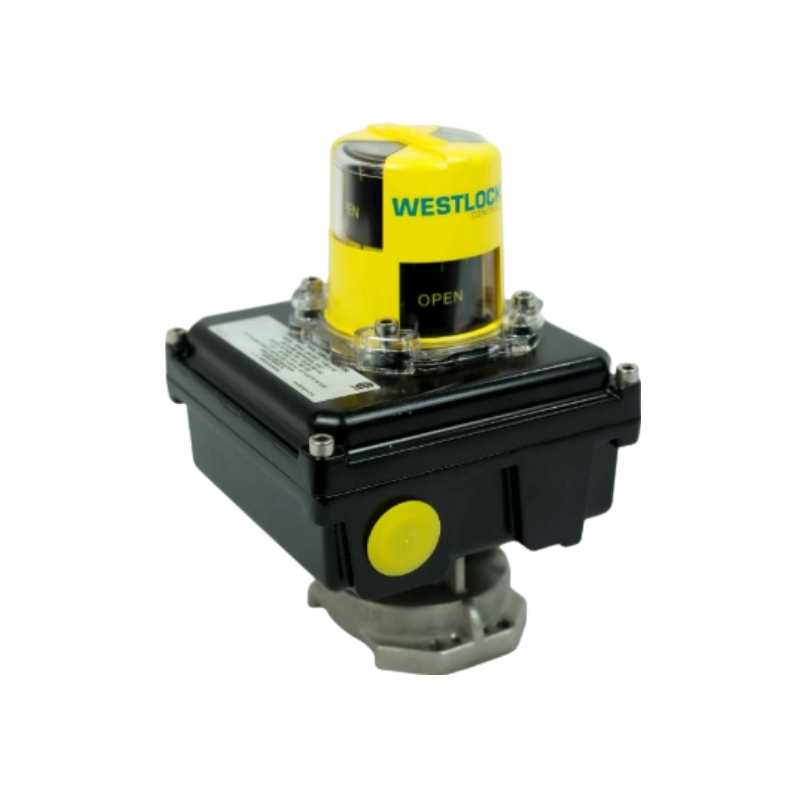

Westlock AccuTrak 9479 MagPAC Series
The Westlock AccuTrak 9479 Series with MagPAC is a globally certified explosionproof/flameproof rotary valve position monitor (limit switchbox), engineered to deliver ultra-reliable, long-life valve position feedback for critical process control in hazardous industrial environments.
Features
1.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors.
2.Terminal strips are pre-wired and numbered with generous working space for ease of use.
3.Strong durable Beacon offers 360° visual indication available in a choice of styles and colors.
4.Additional conduit for easy field wiring and mounting accessories as standard.
5.Standardized mounting pattern for easy adaptation to common bracketry.
6.NAMUR shaft output compliant to VDI/ VDE 3845 available.
7.Analog position transmitter option.
8.Eliminator option for easy integration of external solenoid valve.
9.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
10.Rugged stainless steel enclosures.
Specifications
Agency Approvals: | |
Explosionproof/Flameproof | |
Models 9479 | Intertek ATM:103627517CRT-001 |
Cl. I, Div. 1, Groups C & D; T* | |
Cl. II, Div. 1, Grounds E, F, and G; T* | |
Cl. I, Zone 1, AEx db / Ex db IIB+H2 T* Gb | |
Cl. I, Div. 2. Groups A, B, C & D; T* | |
Zone 21, AEx tb / Ex tb IIIC T* Db IP6X | |
ENCLOSURE STANDARDS | |
All enclosures | Type 4, 4X, IP66/67 |
SWITCHES | |
Magnum/MagPAC | |
V3 (SPDT) | |
Pepperl + Fuchs model NJ2-V3-N | |
ENCLOSURE | |
Aluminum | |
Stainless steel |
