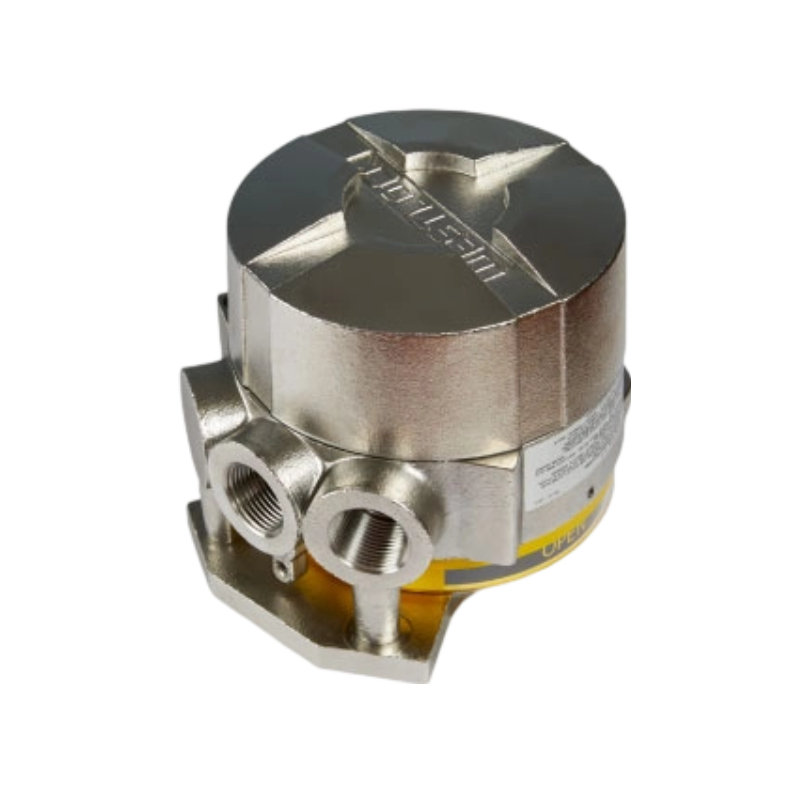

Westlock AccuTrak 366 Switchboxes Explosionproof/Flameproof
The Westlock AccuTrak 366 Series is a compact, globally certified explosionproof/flameproof rotary valve position monitor (switchbox), purpose-built to deliver reliable, high-precision valve position feedback for automated and manual valve assemblies in hazardous areas and space-constrained harsh industrial environments.With full hazardous area certifications including ATEX/IECEx Zone 1/21 and NEC/CEC Class I, Div. 1 approvals, IP66/IP67 ingress protection, and a rugged corrosion-resistant enclosure, it ensures stable long-term operation in dusty, moist, corrosive and high-vibration conditions. This series features tool-free quick calibration, 360° high-visibility valve status indication, universal NAMUR-compliant mounting, and flexible configurable switch/sensor options, making it an ideal space-saving solution for critical process control across oil & gas, chemical, petrochemical, water treatment, power generation and other heavy industrial sectors.
Features
1.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors.
2.Terminal strips are pre-wired and numbered with generous working space for ease of use.
3.Strong durable Beacon offers 360° visual indication available in a choice of styles and colors.
4.Additional conduit for easy field wiring and mounting accessories as standard.
5.Standardized mounting pattern for easy adaptation to common bracketry.
6.NAMUR shaft output compliant to VDI/ VDE 3845 available.
7.Analog position transmitter option.
8.Eliminator option for easy integration of external solenoid valve.
9.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
10.Rugged stainless steel enclosures.
Specifications
TECHNICAL DATA | |
Agency Approvals: | |
Explosionproof/Flameproof | |
Model 366: | Intertek ATM: 104050146CRT-001 |
Class I, Div. 1, Groups ABCD; T* | |
Class II, Div 1, Groups EFG; T* | |
NI, Class I/II, Div. 2, Groups ABCD; T* | |
ENCLOSURE STANDARDS | |
All enclosures | Type 4, 4X; 6P |
SWITCHES | |
Magnum/MagPAC | |
V3 (SPDT) | |
Pepperl + Fuchs model NJ2-V3-N | |
ENCLOSURE | |
Stainless steel |
