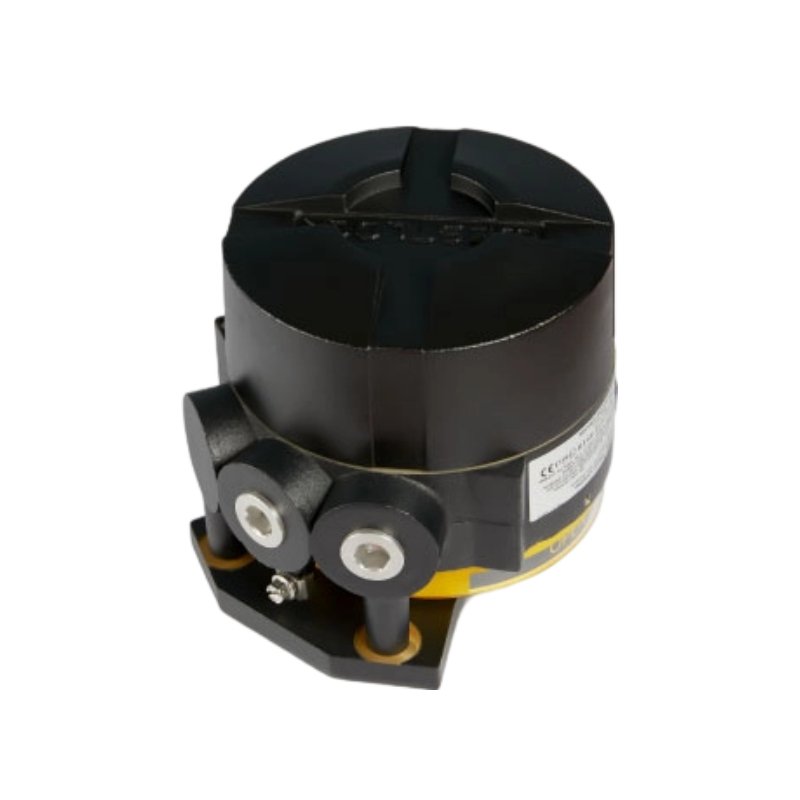

Westlock AccuTrak 360 Switchboxes Explosionproof/Flameproof
The Westlock AccuTrak 360 Series is a globally certified explosionproof/flameproof rotary valve position monitor (switchbox), purpose-built to deliver reliable, high-precision valve position feedback for critical process control in hazardous areas and harsh industrial environments.It holds full hazardous area approvals including ATEX/IECEx Zone 1/21 and NEC/CEC Class I, Div. 1, paired with IP66/IP67 ingress protection and rugged corrosion-resistant enclosures for stable long-term operation in dusty, moist, corrosive and high-vibration conditions. This series features tool-free quick calibration, 360° high-visibility valve status indication, universal NAMUR-compliant mounting, and flexible switch/sensor configuration options, making it a trusted workhorse for oil & gas, chemical & petrochemical, water & wastewater treatment, power generation and other heavy industrial sectors.
Features
1.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors.
2.Terminal strips are pre-wired and numbered with generous working space for ease of use.
3.Strong durable Beacon offers 360° visual indication available in a choice of styles and colors.
4.Additional conduit for easy field wiring and mounting accessories as standard.
5.Standardized mounting pattern for easy adaptation to common bracketry.
6.NAMUR shaft output compliant to VDI/ VDE 3845 available.
7.Analog position transmitter option.
8.Eliminator option for easy integration of external solenoid valve.
9.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
10.Rugged stainless steel enclosures.
Specifications
TECHNICAL DATA | |
Agency Approvals: | |
Explosionproof/Flameproof | |
Intertek ATM: 104050146CRT-001 | |
Cl. I, Div. 1, Groups A, B, C & D; T* | |
Cl. I, Div. 2, Groups A, B, C, D; T* | |
ENCLOSURE STANDARDS | |
All enclosures | Type 4, 4X |
SWITCHES | |
Magnum SPDT (hermetically sealed proximity type) switches | |
V3 (SPDT) | |
Pepperl + Fuchs model NJ2-V3-N | |
ENCLOSURE | |
Aluminum |
Associated Products
AccuTrak 2000/2200 Series
2247ABYN00022AAA-AR1
2247ABYN00022ADZ-AR1
2249ABYN00042AAA-AR2
2249ABYN00042ADZ-AR2
2249SBYN00044ADZ-AR1
2004NBY2A2M0200
2004NBY2A2M02CSU
2007NBY2B2M0200
2007SBY4B2M0400U
AccuTrak 2600 Series
2645SBYN00022FAN-AR2
2645SBYN00022FAN-AR2
2645BYK00022FAN-00
2645BYCS22AD000
2646BYN00022ADZ-AR1
2647ABYN00022FAN-AR1
2647SBYN00022AAA-AR1
2647SBYN00022AAA-AR2
2649ABYN00022AAA-AR2
2649ABYN00022ADZ-AR2
2649ABYN00042ADZ-AR2
2649SBYN00022AAA-AR1
2649SBYN-CCJSV-01
Quantum 3000/3600 Series
3045RBYN000022AAA-AR1
3049SBYN00022AAA-AR1
3345RBYN0CS22FAN-AR1
3347ABYN00022ADZ-AR1
3347ABYN00022FAN-AR1
3347RBYN0CS22FAN-AR1
3347-S-BY-S-000-42FAN-AR1
3600NCMBY2M6XSO2600
Other Common Models
1040NBY2A2M0200
711NBY1A2M0900I2700U
811NBY2M9FIO5700UK
722A-BY-M9-FIO-4300-MO
316SB-STM-020-AAA
