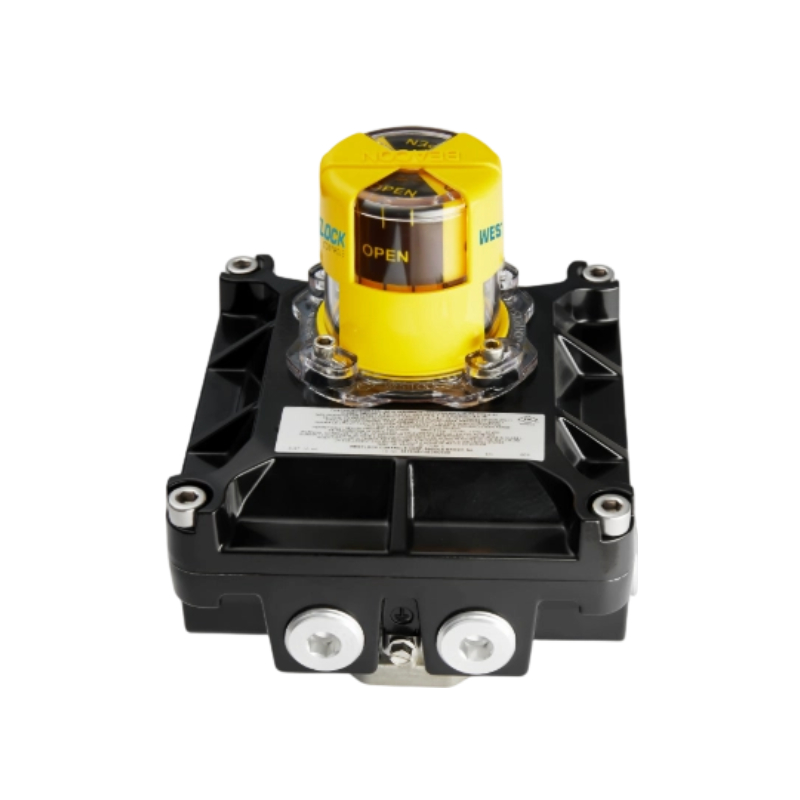

Westlock AccuTrak 2007 Switchboxes Explosionproof/Flameproof
The Westlock AccuTrak 2007 Series is a premium explosionproof/flameproof rotary valve position monitor (limit switchbox), engineered to deliver consistent, high-precision valve position feedback for both manual and automated rotary valves in demanding and hazardous industrial environments. As an all-in-one integrated solution from Westlock Controls, this series combines reliable switching components, pre-wired terminal systems, robust enclosures and intuitive local visual indication into a compact, field-proven unit, ensuring seamless valve status monitoring and operational safety for critical process control systems.
Features
1.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors.
2.Terminal strips are pre-wired and numbered with generous working space for ease of use.
3.Strong durable Beacon offers 360° visual indication available in a choice of styles and colors.
4.Additional conduit for easy field wiring and mounting accessories as standard.
5.Standardized mounting pattern for easy adaptation to common bracketry.
6.NAMUR shaft output compliant to VDI/ VDE 3845 available.
7.Analog position transmitter option.
8.Eliminator option for easy integration of external solenoid valve.
9.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
10.Rugged stainless steel enclosures.
Specifications
TECHNICAL DATA | |
Agency Approvals: | |
Explosionproof/Flameproof | |
Models 2007 | Intertek ATM:103627517CRT-001 |
Cl. I, Div. 1, Groups C & D; T* | |
Cl. II, Div. 1, Grounds E, F, and G; T* | |
Cl. I, Zone 1, AEx db / Ex db IIB+H2 T* Gb | |
Zone 21, AEx tb / Ex tb IIIC T* Db IP6X | |
ENCLOSURE STANDARDS | |
All enclosures | Type 4, 4X, IP66/67 |
Switches | V3 (SPDT) |
ENCLOSURE | |
Aluminum | |
Stainless Steel |
