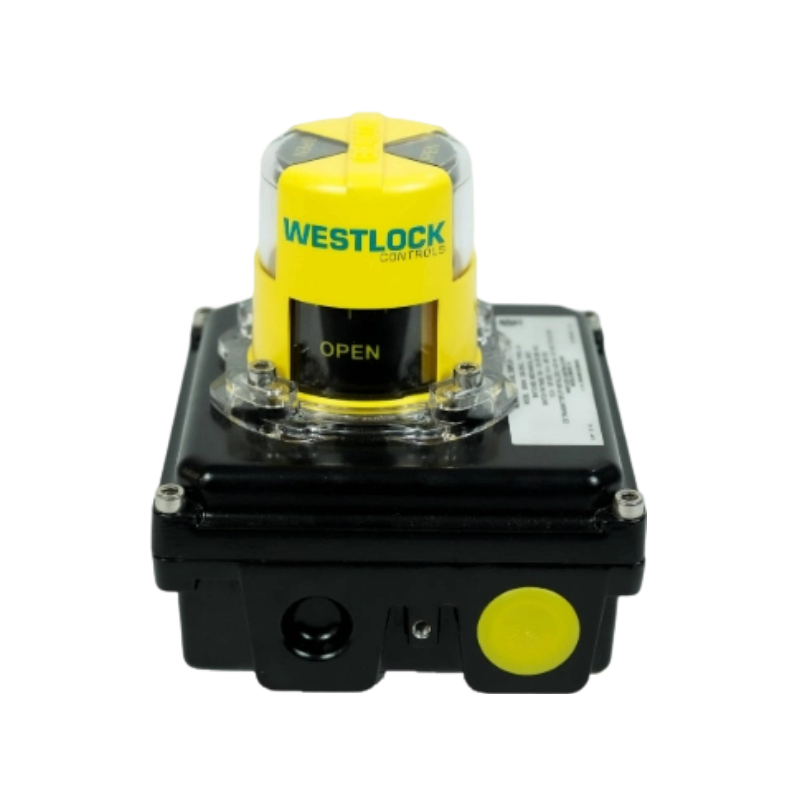

Westlock AccuTrak 3500 Switchboxes Explosionproof/Flameproof
The Westlock AccuTrak 3500 are rugged weatherproof (non-hazardous safe area) valve position monitors (switchboxes) engineered for reliable discrete position feedback and local visual indication of rotary/linear process valves. Designed for general industrial, offshore, and corrosive environments, the 3500 series combines a compact, robust housing, tool-free calibration, and flexible switch/sensor options. Available in engineered resin, low-copper aluminum, or 316 stainless steel enclosures, they deliver IP66/IP67 protection and universal mounting for long-term performance in water, chemical, power, and manufacturing applications.
Features
1.Weatherproof design meeting a wide range of worldwide approvals.
2.Strong durable Beacon™ offers 360° visual indication available in a choice of styles and colors.
3.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors.
4.Terminal strips are pre-wired and numbered with generous working space for ease of use.
5.Additional conduit for easy field wiring and mounting accessories as standard.
6.Wide range of switches and sensors.
7.Switch stabilization plate.
8.Standardized mounting pattern for easy adaptation to common bracketry.
9.Range of drive shaft options.
10.Engineered resin enclosure is robust yet lightweight; allows broad operating temperatures and provides exceptional chemical, UV and impact resistance.
11.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
12.Rugged stainless steel enclosure.
13.IP rated plugs certified where applicable.
Specifications
APPROVALS: | |
Enclosure standards (IEC) | |
All enclosures: | IP66/67 |
SWITCHES | |
V3 SPDT mechanical switches | |
Magnum SPDT (hermetically sealed proximity type) switches | |
V3 inductive proximity sensors | |
ENCLOSURES | |
Engineered Resin, Aluminum, Stainless Steel |
