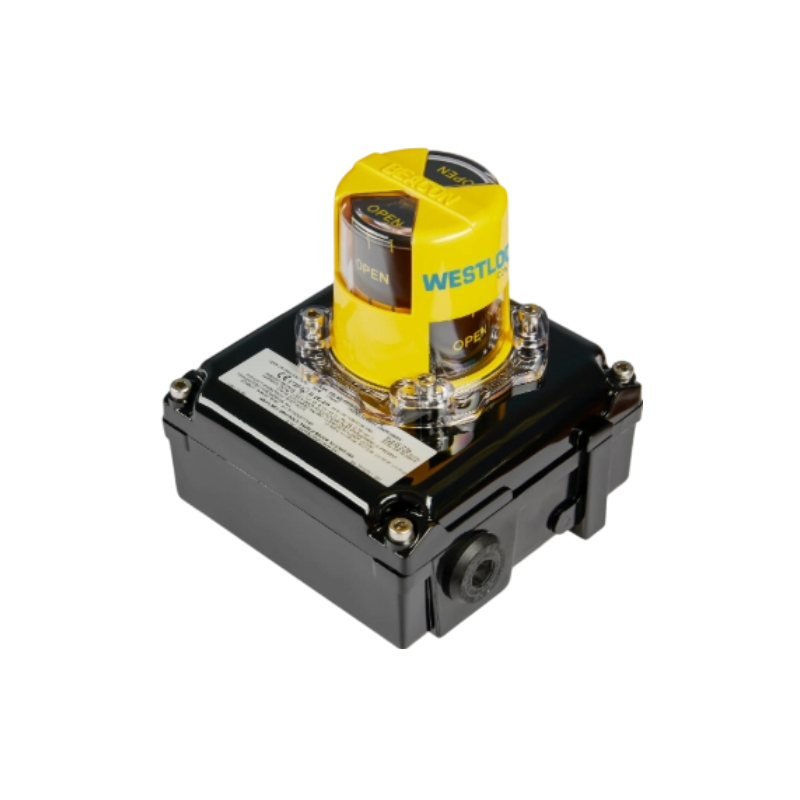

Westlock Digital EPIC D241/D251
The Westlock Digital EPIC D241/D251 are advanced, non-contact intelligent valve position transmitters designed for precise rotary valve position monitoring and feedback in critical process and hazardous environments. The D241 features a lightweight aluminum enclosure, while the D251 offers maximum durability with a 316 stainless steel construction. Integrated with HART® 7 communication, local LCD/LED indication, and global hazardous area certifications, they deliver superior performance, reliability, and ease of use for oil & gas, chemical, refining, and industrial automation applications.
Features
1.Non-contact Position Feedback Design: Offers greater reliability and longer operational life, enhancing plant availability and reducing maintenance.
2.Ease of Commissioning: Simple push-button calibration and local digital display for quick setup.
3.Versatile & Globally Certified: Approved for use in hazardous environments, with end-of-travel sensors and a range of enclosure material options.
4.Advanced Configuration & Diagnostics: Utilizes the latest HART® communication protocol technology, with DD/FDT® DTM® for remote calibration and diagnostics.
5.Precise Input Sensors: Ensures accurate feedback and optimal performance.
Specifications
Area classification (ATEX/IEC) | Ex II *GD |
Ex ia II* T* G* | |
Ex tb IIIC T135°C Db IP6X | |
Area classification (NEC/CEC) | |
Intrinsically Safe | Class I, II, III, Div. 1; Groups A, B, C, D, E, F, G, Class III: T6 Type 4X |
Non-Incendive | Class I, Div. 2; Groups A, B, C, D; T6 Type 4X |
TECHNICAL DATA | |
Transmitter Output | Polarity insensitive, two wire 4-20 mA, Namur NE43 |
Transmitter Operating Voltage | 9 VDC - 30 VDC |
STROKE | |
Rotary: | 30° to 210° Potentiometer |
30° to 270° Non-contact sensor | |
SWITCHES | |
Magnum SPDT hermetically sealed switches with rhodium contacts | |
Pepperl + Fuchs model NJ2-V3-N | |
SPDT mechanical switches, with gold-plated contacts | |
ENCLOSURES | |
D241 | Aluminum |
D251 | Stainless Steel |
Associated Products
AccuTrak 2000/2200 Series
2247ABYN00022AAA-AR1
2247ABYN00022ADZ-AR1
2249ABYN00042AAA-AR2
2249ABYN00042ADZ-AR2
2249SBYN00044ADZ-AR1
2004NBY2A2M0200
2004NBY2A2M02CSU
2007NBY2B2M0200
2007SBY4B2M0400U
AccuTrak 2600 Series
2645SBYN00022FAN-AR2
2645SBYN00022FAN-AR2
2645BYK00022FAN-00
2645BYCS22AD000
2646BYN00022ADZ-AR1
2647ABYN00022FAN-AR1
2647SBYN00022AAA-AR1
2647SBYN00022AAA-AR2
2649ABYN00022AAA-AR2
2649ABYN00022ADZ-AR2
2649ABYN00042ADZ-AR2
2649SBYN00022AAA-AR1
2649SBYN-CCJSV-01
Quantum 3000/3600 Series
3045RBYN000022AAA-AR1
3049SBYN00022AAA-AR1
3345RBYN0CS22FAN-AR1
3347ABYN00022ADZ-AR1
3347ABYN00022FAN-AR1
3347RBYN0CS22FAN-AR1
3347-S-BY-S-000-42FAN-AR1
3600NCMBY2M6XSO2600
Other Common Models
1040NBY2A2M0200
711NBY1A2M0900I2700U
811NBY2M9FIO5700UK
722A-BY-M9-FIO-4300-MO
316SB-STM-020-AAA
