Westlock AccuTrak 2600 Switchboxes Explosionproof/Flameproof

The Westlock AccuTrak 2600 series is a flameproof (Ex d) rotary valve position feedback and monitoring switch box designed for hazardous gas/dust areas. Primarily intended for high-risk operating conditions such as petroleum, chemical, and natural gas industries, it provides valve position signal feedback and visual indication.

Online consultation

Details

Features

1.Flameproof design meeting a wide range of worldwide approvals.
2.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position sensors.
3.Strong durable Beacon® offers 360° visual indication available in a choice of styles and colors.
4.Terminal strips are pre-wired and numbered with generous working space for ease of use.
5.Additional conduit for easy field wiring and mounting accessories as standard.
6.Wide range of switches and sensors.
7.Position transmitter option.
8.Switch stabilization plate.
9.Standardized mounting pattern for easy adaptation to common bracketry.
10.Range of drive shaft options.

Specifications

TECHNICAL DATA	Ex II 2 GD Ex db IIC T* Gb Ex tb IIIC T*°C Db IP6X Enclosure standards (IEC) All enclosures IP66/67
SWITCHES	All models V3 SPDT mechanical switches All models V3 slotted and barrel inductive proximity sensors All models Magnum SPDT (hermetically sealed proximity type) switches
ENCLOSURES	AluminumStainless steel CF8M (316)

TECHNICAL DATA

Ex II 2 GD

Ex db IIC T* Gb

Ex tb IIIC T*°C Db IP6X

Enclosure standards (IEC)

All enclosures IP66/67

SWITCHES

All models V3 SPDT mechanical switches

All models V3 slotted and barrel inductive proximity sensors

All models Magnum SPDT (hermetically sealed proximity type) switches

ENCLOSURES

AluminumStainless steel CF8M (316)

Associated Products

AccuTrak 2000/2200 Series

2247ABYN00022AAA-AR1

2247ABYN00022ADZ-AR1

2249ABYN00042AAA-AR2

2249ABYN00042ADZ-AR2

2249SBYN00044ADZ-AR1

2004NBY2A2M0200

2004NBY2A2M02CSU

2007NBY2B2M0200

2007SBY4B2M0400U

AccuTrak 2600 Series

2645SBYN00022FAN-AR2

2645BYK00022FAN-00

2645BYCS22AD000

2646BYN00022ADZ-AR1

2647ABYN00022FAN-AR1

2647SBYN00022AAA-AR1

2647SBYN00022AAA-AR2

2649ABYN00022AAA-AR2

2649ABYN00022ADZ-AR2

2649ABYN00042ADZ-AR2

2649SBYN00022AAA-AR1

2649SBYN-CCJSV-01

Quantum 3000/3600 Series

3045RBYN000022AAA-AR1

3049SBYN00022AAA-AR1

3345RBYN0CS22FAN-AR1

3347ABYN00022ADZ-AR1

3347ABYN00022FAN-AR1

3347RBYN0CS22FAN-AR1

3347-S-BY-S-000-42FAN-AR1

3600NCMBY2M6XSO2600

Other Common Models

1040NBY2A2M0200

711NBY1A2M0900I2700U

811NBY2M9FIO5700UK

722A-BY-M9-FIO-4300-MO

316SB-STM-020-AAA

Pictures show

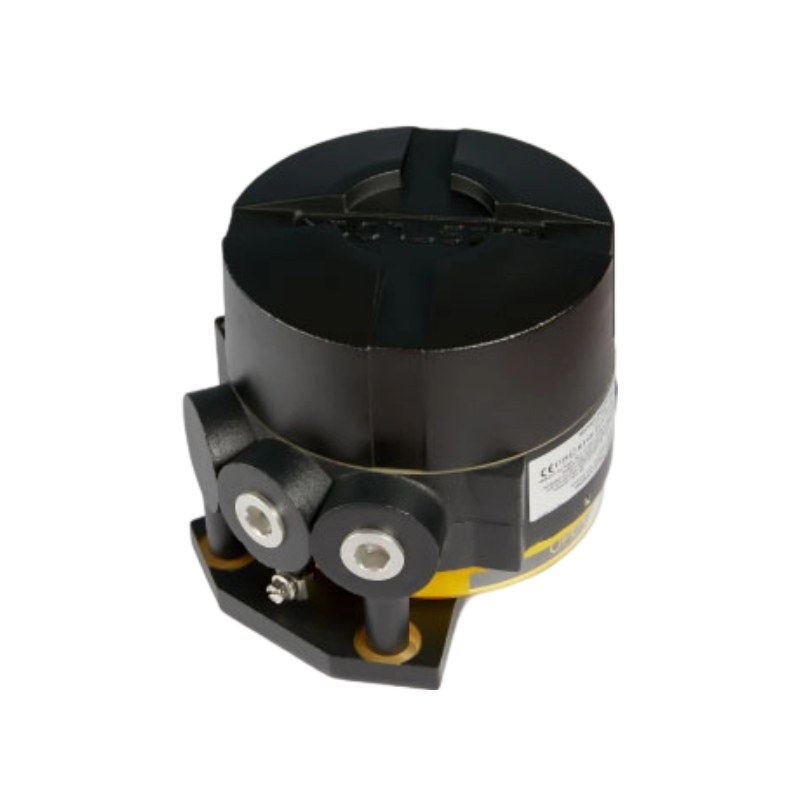

Westlock AccuTrak 2600 Switchboxes Explosionproof/Flameproof
