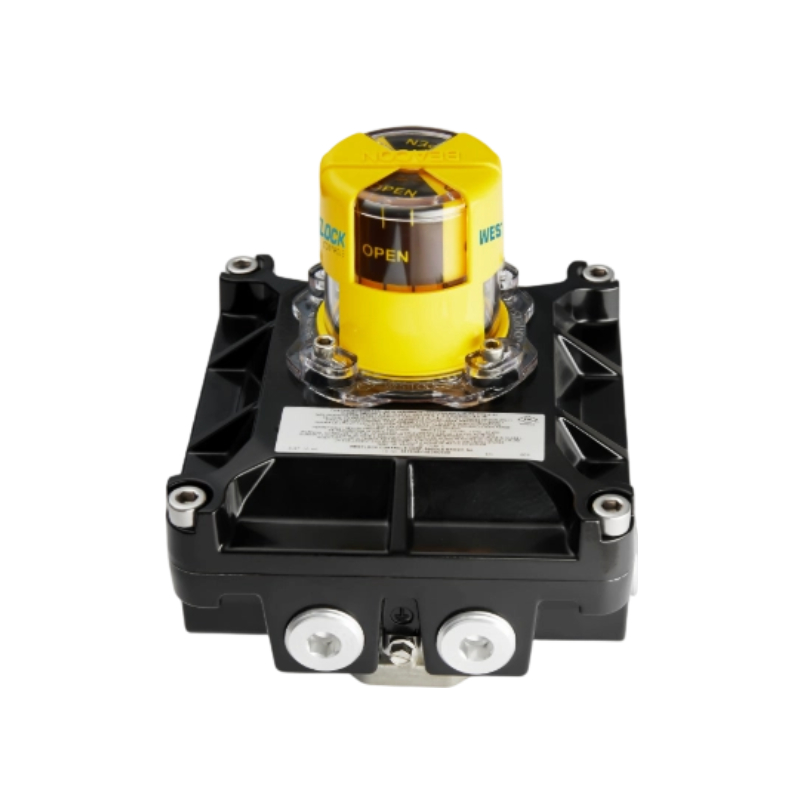

Westlock AccuTrak 2200 Switchboxes Explosionproof/Flameproof
The Westlock AccuTrak 2200 Series Explosionproof/Flameproof Switchboxes are high-performance rotary valve position monitors, engineered for reliable end-of-travel indication and visual status feedback in the most demanding hazardous industrial environments. Designed for automated and manual rotary valves, these switchboxes deliver precision monitoring, robust explosionproof protection, and simplified field maintenance, making them an essential solution for oil & gas, chemical, petrochemical, and other hazardous area applications.
Features
1.Flameproof design meeting a wide range of worldwide approvals.
2.Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position sensors.
3.Strong durable Beacon® offers 360° visual indication available in a choice of styles and colors.
4.Terminal strips are pre-wired and numbered with generous working space for ease of use.
5.Additional conduit for easy field wiring and mounting accessories as standard.
6.Wide range of switches and sensors.
7.Position transmitter option.
8.Switch stabilization plate.
9.Standardized mounting pattern for easy adaptation to common bracketry.
10.Range of drive shaft options.
11.Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
12.Rugged 316 stainless steel enclosures
13.IP rated plugs certified where applicable.
Specifications
TECHNICAL DATA | Area classification (ATEX/IEC)2200 series:Ex II 2 GDEx db IIB+H2 T* GbEx tb IIIC T*°C Db IP6XAll enclosures IP66/67 |
SWITCHES | All models V3 SPDT mechanical switches All models V3 slotted and barrel inductive proximity sensors All models Magnum SPDT (hermetically sealed proximity type) switches 2200 Series GO hermetically sealed switches |
ENCLOSURES | Aluminum Stainless steel CF8M (316) |
Associated Products
AccuTrak 2000/2200 Series
2247ABYN00022AAA-AR1
2247ABYN00022ADZ-AR1
2249ABYN00042AAA-AR2
2249ABYN00042ADZ-AR2
2249SBYN00044ADZ-AR1
2004NBY2A2M0200
2004NBY2A2M02CSU
2007NBY2B2M0200
2007SBY4B2M0400U
AccuTrak 2600 Series
2645SBYN00022FAN-AR2
2645SBYN00022FAN-AR2
2645BYK00022FAN-00
2645BYCS22AD000
2646BYN00022ADZ-AR1
2647ABYN00022FAN-AR1
2647SBYN00022AAA-AR1
2647SBYN00022AAA-AR2
2649ABYN00022AAA-AR2
2649ABYN00022ADZ-AR2
2649ABYN00042ADZ-AR2
2649SBYN00022AAA-AR1
2649SBYN-CCJSV-01
Quantum 3000/3600 Series
3045RBYN000022AAA-AR1
3049SBYN00022AAA-AR1
3345RBYN0CS22FAN-AR1
3347ABYN00022ADZ-AR1
3347ABYN00022FAN-AR1
3347RBYN0CS22FAN-AR1
3347-S-BY-S-000-42FAN-AR1
3600NCMBY2M6XSO2600
Other Common Models
1040NBY2A2M0200
711NBY1A2M0900I2700U
811NBY2M9FIO5700UK
722A-BY-M9-FIO-4300-MO
316SB-STM-020-AAA
Pictures show
