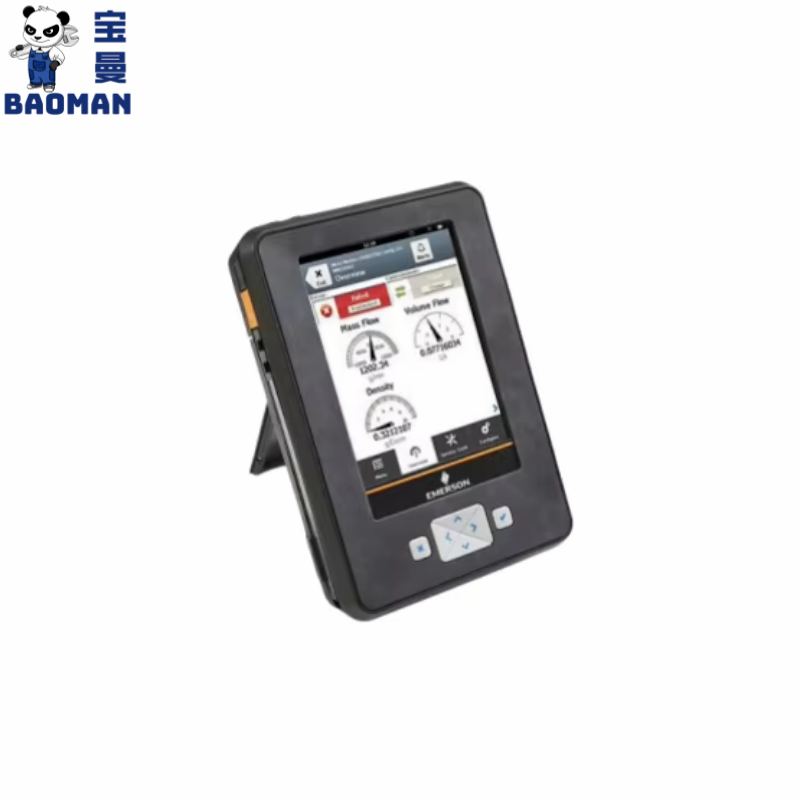

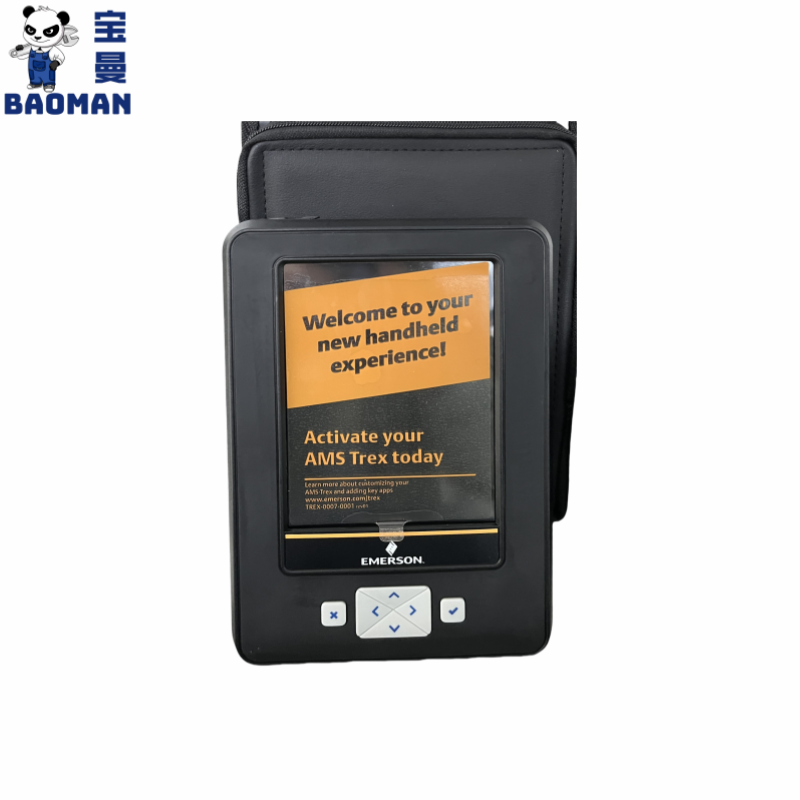

AMS Trex TREXCHPKLWP3|HART, (Li-ion), IS, Wireless,3Y Prem
Improve reliability with the AMS Trex Device Communicator. Increase productivity in the field with your Trex unit by doing more types of tasks. Easily solve complex device issues without the need for other specialized tools. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities and is safety-rated, so it can go anywhere you can go. Rely on Trex to deliver results and keep your field assets reliable.
Features
1.Eliminate the need for specialized tools with power the loop functionality
2.Quickly resolve field devices issues with advanced diagnostics
3.Configure and test valves inline
4.Improve efficiency with a modern, intuitive user interface
5.Intrinsically safe to go anywhere you go
6.Automatically synchronize field data with AMS Device Manager
Specifications
Weight | Approximately 2.9 lbs (1330 grams) |
Microprocessor | 800 MHz ARM Cortex A8/NXP |
Internal Memory & Flash | 2 GB NAND internal flash; 32 GB extended flash |
RAM | 512 MB DDR3 SDRAM |
Display | 5.7 in (14.5 cm) color VGA resistive touchscreen |
Battery Operating Time | 8+ hours of typical use |
Operating Temperature | -20 to 55°C (-4 to 122°F) |
Enclosure Rating | IP54 |
Shock Resistance | Tested to survive a 1-meter drop test onto concrete |
Associated Products
1. HART Only
Non-IS (NA)
TREXCHPNAWS1
TREXCHPNAWS3
TREXCHPNAWP1
TREXCHPNAWP3
TREXCHPNA9S1
TREXCHPNA9S3
TREXCHPNA9P1
TREXCHPNA9P3
Intrinsically Safe (KL)
TREXCHPKLWS1
TREXCHPKLWS3
TREXCHPKLWP1
TREXCHPKLWP3
TREXCHPKL9S1
TREXCHPKL9S3
TREXCHPKL9P1
TREXCHPKL9P3
2. HART Only (Plus Module: L, Loop Power)
Non-IS (NA)
TREXLHPNAWS1
TREXLHPNAWS3
TREXLHPNAWP1
TREXLHPNAWP3
TREXLHPNA9S1
TREXLHPNA9S3
TREXLHPNA9P1
TREXLHPNA9P3
Intrinsically Safe (KL)
TREXLHPKLWS1
TREXLHPKLWS3
TREXLHPKLWP1
TREXLHPKLWP3
TREXLHPKL9S1
TREXLHPKL9S3
TREXLHPKL9P1
TREXLHPKL9P3
3. HART + FOUNDATION Fieldbus
Non-IS (NA)
TREXCFPNAWS1
TREXCFPNAWS3
TREXCFPNAWP1
TREXCFPNAWP3
TREXCFPNA9S1
TREXCFPNA9S3
TREXCFPNA9P1
TREXCFPNA9P3
Intrinsically Safe (KL)
TREXCFPKLWS1
TREXCFPKLWS3
TREXCFPKLWP1
TREXCFPKLWP3
TREXCFPKL9S1
TREXCFPKL9S3
TREXCFPKL9P1
TREXCFPKL9P3
