Features

• 1.Highly compact design saves space and reduces cooling costs

• 2.Integrated dual Ethernet port with multiple fieldbus protocols enables you to operate flexibly, free of stock costs and lead time

• 3.Switch fieldbus in the field, without changing boards. These protocols are available for activation by license key: PROFIsafe, PROFINET RT, Modbus TCP, EtherNet/IP, EtherCAT, and OPC UA

• 4.Safe Torque-Off (STO) up to SIL3 / Performance Level e (PLe) as standard, for highest reliability and easier certification. Optional STO button on door, for enclosed drives

• 5.Functional safety via fieldbus: PROFIsafe

• 6.Safe Torque-Off up to SIL3 / Performance Level e (PLe) as standard, for highest reliability and easier certification

• 7.Numerous integrated sensors improve performance and control accuracy

• 8.Use our virtual models to speed up and de-risk your development project

• 9.Integration unit with built-in filters reduces integration cost

• 10.Increase power by paralleling power units with no need for balancing filters

• 11.Fast power unit replacement with no need to remove motor cables

• 12.Modular and scalable control concept

• 13.Efficient heat management with back-channel cooling

• 14.Connect to any motor and the drive will adapt: induction motor (IM), permanent magnet motor (PM), or high-efficiency synchronous reluctance motor (SynRM)

Associated Products

Danfoss Inverter Related Models

VLT Micro Drive: FC-051, FC-51

VLT Midi Drive: FC-280, FC-2800

VLT AutomationDrive: FC-301, FC-302, FC-360

VLT AQUA Drive: FC-200, FC-202

VLT HVAC Drive: FC-101, FC-102

VLT Flow Drive: FC-111

VLT Refrigeration Drive: FC-103

VLT Lift Drive: LD-301, LD-302

VACON 20, VACON 100, VACON NXP, VACON NXS

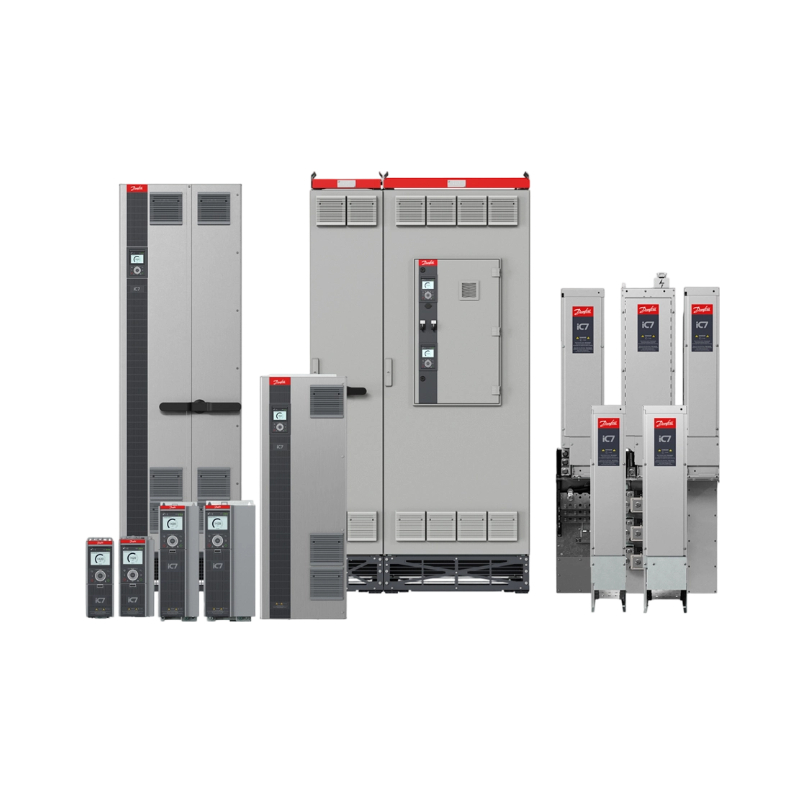

Pictures show
