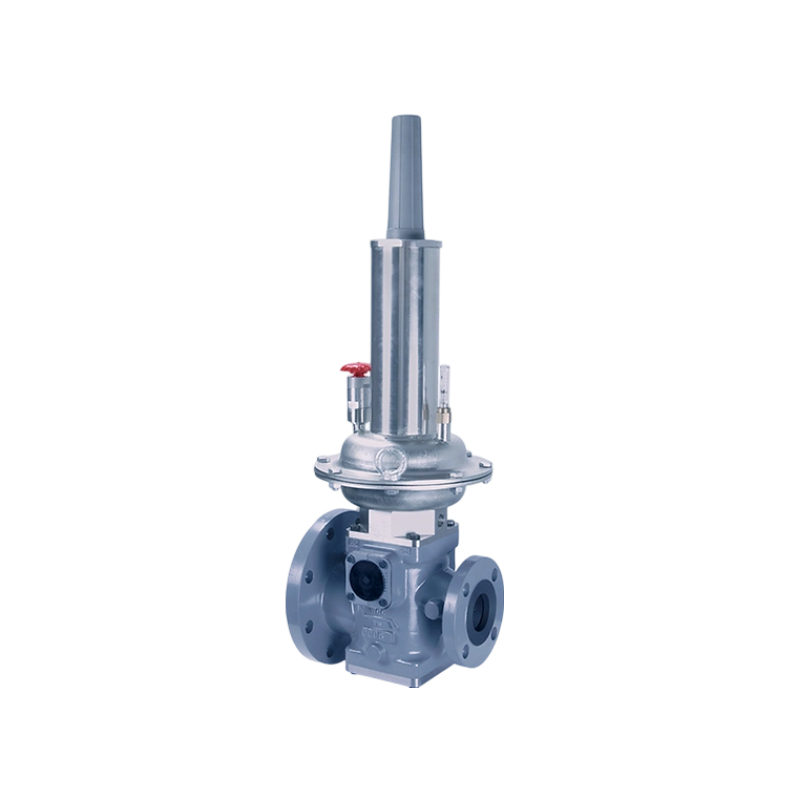

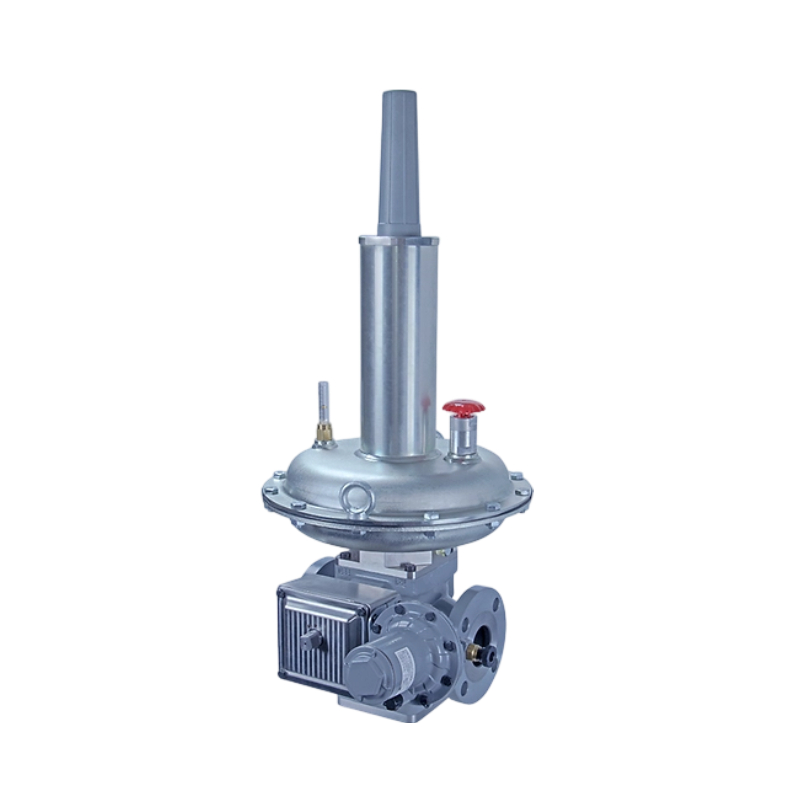

Fisher LS200 Series Regulators
Fisher LS200 self operated regulator are ideal for district stations or high capacity industrial applications such as driers, furnaces, boilers or burners. The LS200 is a large capacity, balanced port with optional integral slam-shut. Ease of maintenance was the primary goal in this product development.
Features
1.Easy maintenance - 30 minute disc change with 1 person
2.Fail Open Design for District Station monitor applications
3.Travel Indicator (Travel Monitoring in Development)
4.Expanded Outlet for short piping
5.Field convertible slam-shut location (Slam-shut can be installed on either side of body)
6.Bubble tight shutoff
7.25% H2 Blending Ready, Contact Emerson Impact Partners for 100% H2
8.Ductile iron, Gray Iron, Steel Body
9.Optional Integrated Slam-shut with Remote Monitoring
Specifications
Body Sizes & Materials | Gray Iron: 2x2 DN50x50 with NPT or 125FF; 2x4 DN50x100 with 125FF Ductile Iron: 2x2 DN50x50 with NPT, PN16 or 150RF; 2x4 DN50x100 with PN16 or 150RF Steel: 2x2 DN50x50 with NPT, PN16 or 150RF; 2x4 DN50x100 with PN16 or 150RF |
Operating Inlet Pressure | Type LS220: 125 psi / 8.6 bar (set points <10 psi); 284 psi / 19.6 bar (set points >10 psi / 0.69 bar) Type LS250: 300 psi / 20.7 bar |
Maximum Emergency Inlet Pressure | 300 psi / 20.7 bar |
Maximum Emergency Outlet (Casing) Pressure | Medium Pressure: 50 psi / 3.44 bar High Pressure: 150 psi / 10.34 bar |
Spring Ranges | LS220, LS224 (350mm): Light Green: 4.35 to 5.1 psi / 0.3 to 0.35 bar Pink: 4.35 to 10.6 psi / 0.3 to 0.73 bar Dark Blue: 4.8 to 15.7 psi / 0.33 to 1.08 bar Orange: 8.3 to 21.75 psi / 0.57 to 1.5 bar LS250, LS254 (255mm): Pink: 20 to 30.3 psi / 1.38 to 2.09 bar Dark Blue: 20 to 44.8 psi / 1.38 to 3.09 bar Orange: 25 to 60 psi / 1.72 to 4.14 bar |
Temperature Ratings | -20 to 150°F / -29 to 66°C (Non PED) -4 to 140°F / -20 to 60°C -40 to 150°F / -40 to 66°C (Functionally tested to -40°F/-40°C) |
Certifications | DVGW, V9, CRN, 25% H2 Blending Approved, EN334, EN14382 |
Pressure Registration | External |
Hydrogen (H2) Compatibility | The LS200 family was validated for hydrogen service through extensive high pressure hydrogen testing to analyze sealing performance and material compatibility. |
