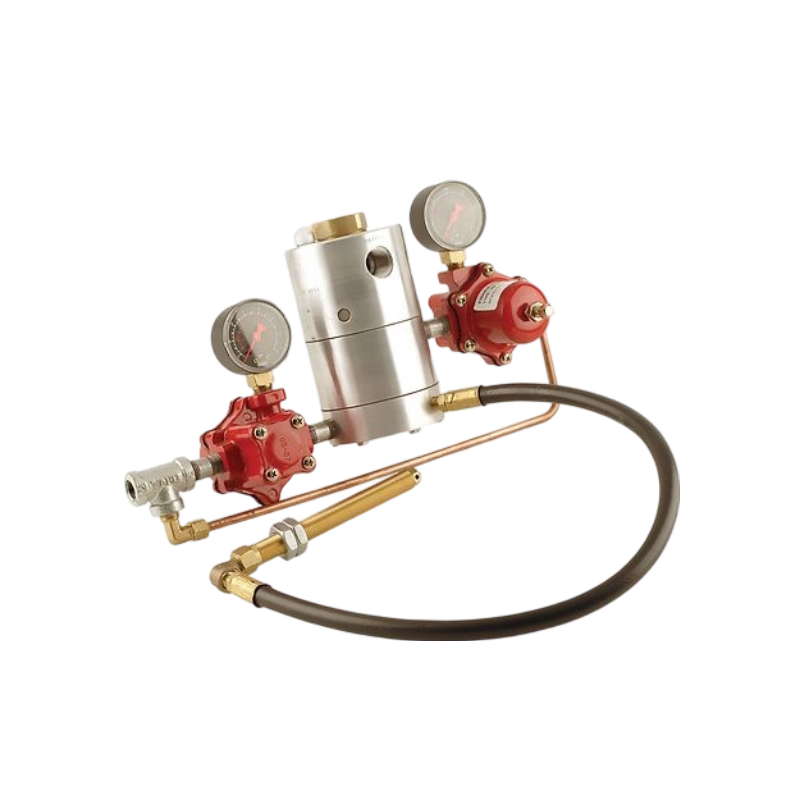

Fisher Type N201 Automatic Cylinder Filling Valve
Fisher Type N201 automatic cylinder filling valve provides an accurate and economical means of filling cylinders. The assembly comes completely piped up and includes special parts that allow the slide weight on the scale to move to zero. A red button appears in the indicator on top of the Type N201 each time a cylinder is filled to the desired weight. Operated by air pressure, it is designed for beam type scales and requires no electrical or mechanical power.
Features
1.Scale Balance
2.Requires No Electrical or Mechanical Power for Operation
Specifications
Filling Capacity
112 pounds per minute / 51 kg/min propane at 30 psig / 2,1 bar differential
Type of Scale
Beam type only, not suitable for use with dial type scales
Inlet Connection
1/2-inch FNPT, attaches to filling manifold
Outlet Connection
1/2-inch FNPT
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
