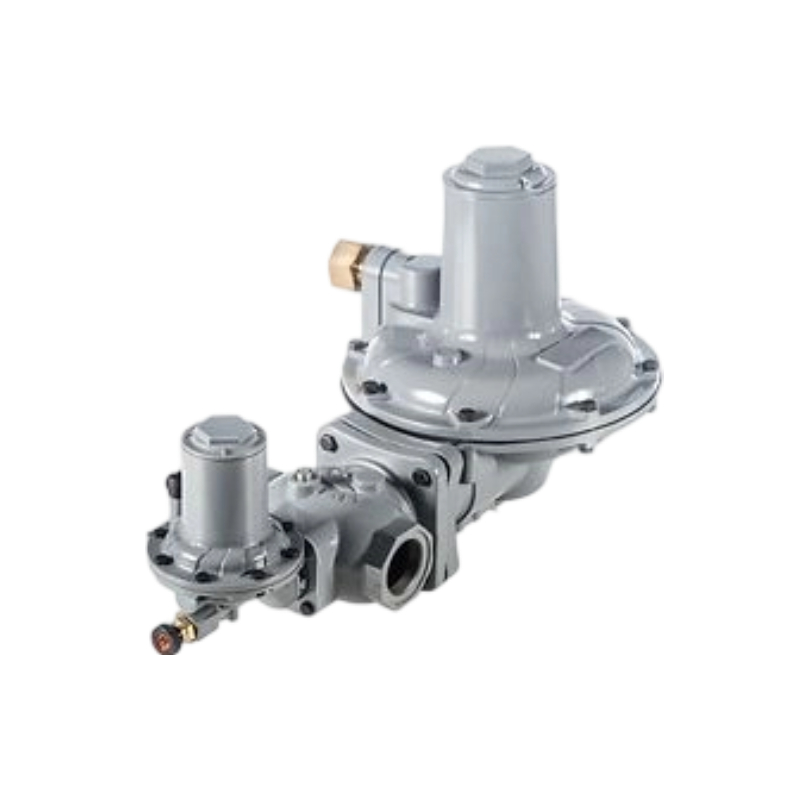

Fisher CSB600 Pressure Reducing Regulators
The CSB600 Series direct-operated, spring-loaded regulators are engineered to fit a multitude of pressure reducing applications. This flexibility is provided by the numerous body sizes and end connections, outlet pressure settings in external pressure registration. The CSB600 Series offers multiple overpressure protection options to meet your application requirements.
Features
1.Ductile Iron and WCC Steel Bodies Available
2.Wide Variety of Body Sizes and End Connections
3.With Type VSX8 Slam-Shut Option
4.No Special Tools for Pressure Adjustment and Orifice Removal
Specifications
Body Sizes and End Connection Styles | Ductile Iron: 1-1/4, 1-1/2, or 2 NPT, Rp 1-1/4, 1-1/2, or 2, NPS 2 / DN 50 CL125 FF, NPS 2 / DN 50 CL150 FF, NPS 2 / DN 50 PN 10/16, NPS 1-1/4 / DN 32, NPS 1-1/2 / DN 40 PN 16 Slip-On WCC Steel: 1-1/4, 1-1/2, or 2 NPT, Rp 1-1/4, 1-1/2, or 2, NPS 2 / DN 50 CL150 RF, NPS 2 / DN 50 PN 10/16 |
Maximum Operating Inlet Pressure | Integral Strength (IS): 5 bar / 73 psig Differential Strength (DS): 16 bar / 232 psig |
Maximum Emergency Inlet Pressure | Integral Strength (IS): 5 bar / 73 psig Differential Strength (DS): 20 bar / 290 psig |
Outlet Pressure Range | 9 mbar to 4.0 bar / 0.13 to 58 psig |
Maximum Emergency Outlet Pressure (Casing) | 5.0 bar / 73 psig |
Max Outlet Pressure to Avoid Internal Metallic Parts Damage | 1.5 bar / 21.8 psig - not to exceed maximum emergency outlet pressure |
Temperature Capabilities | According to PED Standards: -20 to 66°C / -4 to 151°F Non-PED: -30 to 66°C / -22 to 151°F |
Approximate Weights | Threaded Body: Type CSB600: 13 kg / 29 Pounds Type CSB604: 14 kg / 31 Pounds Flanged Body: Add 5.2 kg / 11 Pounds to weights listed above |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
Pictures show
