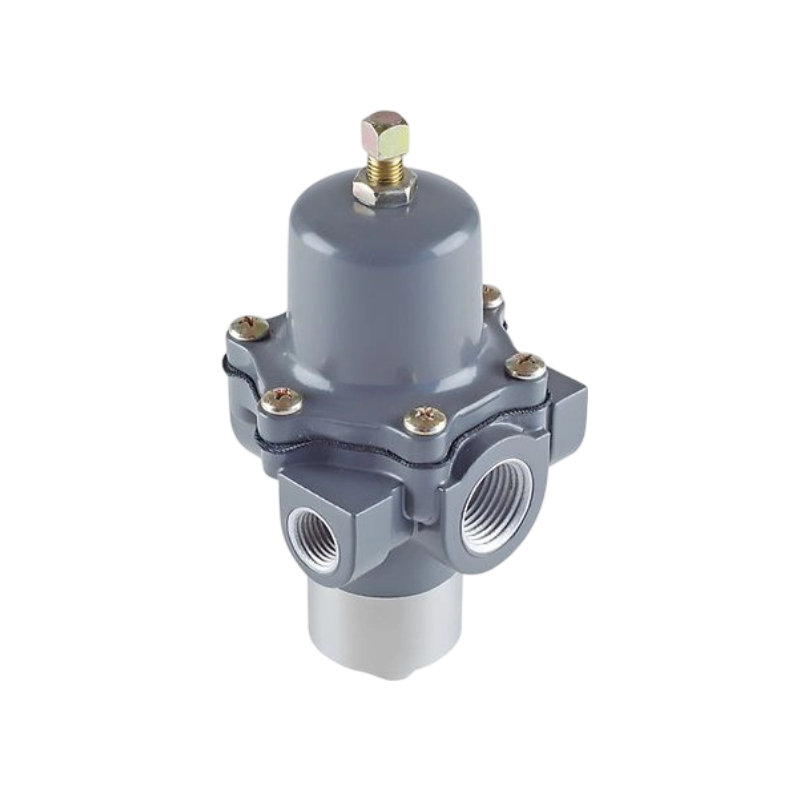

Fisher 67D Series Pressure Reducing Regulators
67D Series direct-operated regulators and filter regulators are typically used to deliver constant reduced pressure of gaseous fluids to pilot-operated controllers and other pneumatic instrumentation.
Features
1.Compact
2.Panel Mounting
3.Instrument Supply Regulator
4.Optional Stainless Steel Material Construction
5.Internal Relief
6.Smart Bleed—: Internal Check Valve to Relief Pressure from Outlet when Supply Pressure is Lost
7.Rugged Construction
8.Corrosion Resistant Fasteners
Specifications
Available Body Materials | 67D Series: Aluminum 67DS Series: Stainless Steel |
Available Constructions | 67D & 67DS: standalone pressure regulator 67DR & 67DSR: with soft seat internal relief 67DF & 67DFS: with filter 67DFR & 67DFSR: with filter and soft seat internal relief |
Body Size and End Connection Style | 1/2 NPT |
Maximum Inlet Pressure (Body Rating) | All Filtered Models: 250 psig / 17.2 bar All Unfiltered Models: 400 psig / 27.6 bar |
Maximum Emergency Outlet Pressure | 150 psi / 10.3 bar over outlet pressure setting, up to a maximum of 250 psi / 17.2 bar |
Pressure Registration | Internal |
Temperature Capabilities | NBR: -40 to 180°F / -40 to 82°C FKM: 0 to 300°F / -18 to 149°C Silicone (VMQ) Diaphragm and Low Temp Bolting: -60 to 180°F / -51 to 82°C Arctic/Extreme Low Temperature Construction: -76 to 140°F / -60°C to 60°C |
Approximate Weights | 67D and 67DR: 1.2 Pound / 0.5 kg 67DF and 67DFR: 2.0 Pounds / 0.9 kg 67DS and 67DSR: 2.8 Pounds / 1.2 kg 67DFS and 67DFSR: 4.6 Pounds / 2.1 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to official technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
