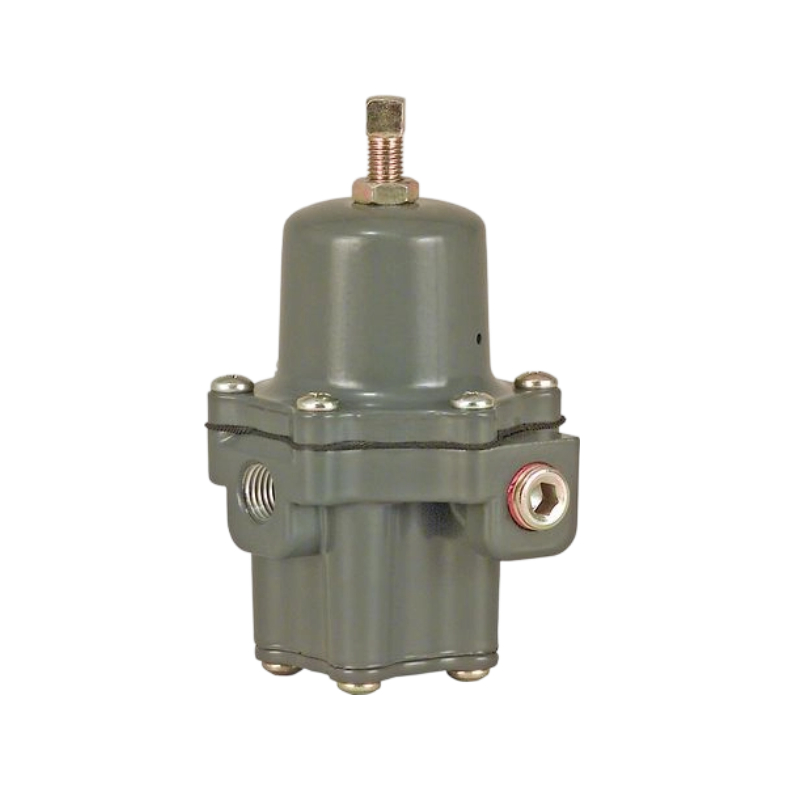

Fisher 67C Series Instrument Supply Regulators
67C Series direct-operated regulators and filter regulators are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. These are suitable for most air or gas applications. Other applications include providing reduced pressures to air chucks, air jets, and spray guns.
Features
1.Compact
2.Panel Mounting
3.Instrument Supply Regulator
4.Optional Stainless Steel Material Construction
5.Internal Relief
6.Smart Bleed≬Internal Check Valve to Relief Pressure from Outlet when Supply Pressure is Lost
7.Rugged Construction
8.Corrosion Resistant Fasteners
Specifications
Available Body Materials | 67C Series: Aluminum67CS Series: Stainless Steel |
Available Constructions | 67C & 67CS: standalone pressure regulator 67CR & 67CSR: with soft seat internal relief 67CF & 67CFS: with filter67CFR & 67CFSR: with filter and soft seat internal relief |
Body Size and End Connection Style | 1/4 NPT |
Maximum Inlet Pressure (Body Rating) | All models except Types 67CS and 67CSR: 250 psig / 17.2 barTypes 67CS and 67CSR: 400 psig / 27.6 bar |
Maximum Emergency Outlet Pressure | 50 psi / 3.4 bar over outlet pressure setting |
Pressure Registration | Internal |
Temperature Capabilities | NBR: -40 to 180°F / -40 to 82°C FKM: 0 to 300°F / -18 to 149°C Silicone (VMQ) Diaphragm and Low Temp bolting: -60 to 180°F / -51 to 82°C Arctic/Extreme Low Temperature Construction: -76 to 140°F / -60°C to 60°C |
Approximate Weights | 67C, 67CR, 67CF and 67CFR: 1 Pound / 0.5 kg 67CS and 67CSR: 2.5 Pounds / 1.1 kg 67CFS and 67CFSR: 4 Pounds / 1.8 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
