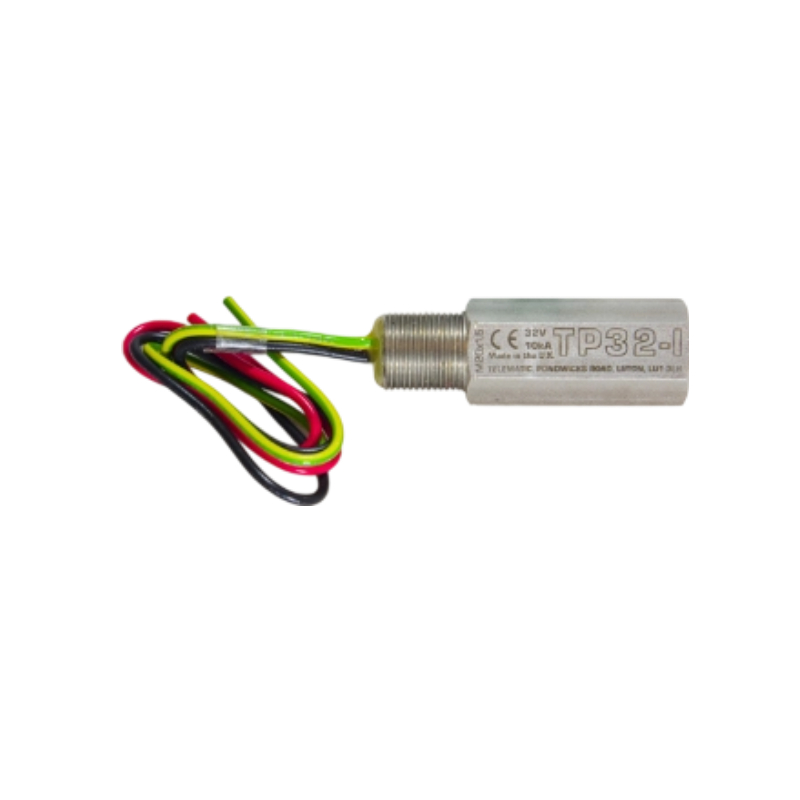

Etaon MTL TP32 & TP32-T for fieldbus transmitters and devices
The Crouse-Hinds series MTL TP32 surge protection device is specifically designed to protect fieldbus transmitters and devices on fieldbus systems. The TP32 builds on the high specification of the acclaimed TP48 range to provide a level of surge protection for fieldbus transmitters in excess of the optional transient protection available from some transmitter manufacturers.
The TP32 protection network is a hybrid design consisting of highpower, solid state electronics and a gas discharge tube which is capable of diverting surges up to 20kA. Encased in a 316 stainless steel enclosure, the TP32 exhibits unparalleled mechanical durability
Providing years of maintenance-free operation in harsh environments. The enclosure is available threaded for all the common conduit entries. Versions are available for 1/2” NPT, 20mm ISO, and G 1/2” (BSP 1/2 inch) threaded entries.
The terminated TP32-T has the same protection circuit as the standard product, but also includes a Foundation Fieldbus H1/Profibus PA termination circuit. This unique combination eliminates the need to purchase and install additional termination circuitry for the fieldbus segment.
Approvals for intrinsically safe, flameproof, explosion-proof and non-incendive operation are available, in all gas groups and apparatus temperature classifications up to T6.
Features
1.TP32 is a fieldbus specific surge protector designed to meet the requirements of IEC 61158-2:2004 & ANSI/ISA-50.02-2:1992
2.TP32-T includes a terminator for fieldbus in addition to surge protection
3.Designed for use with Foundation fieldbus H1 and Profibus PA transmitters
4.Easy and direct mounting — screws into spare conduit entry on the transmitter
5.Parallel connection ensures ‘transparent’ operation — zero voltage-drop across device
6.ATEX approved, Certified FISCO Terminator
7.10 year product warranty
Associated Products
In stock SD series surge protector models:
SD07；SD07R；SD07R3；SD07X；
SD16；SD16R；SD16R3；SD16X；
SD32；SD32R；SD32R3；SD32T3；SD32X
SD55；SD55R；SD55R3；SD55X
SDRTD；SD150X；SD275X
In stock ZB series surge protector models:
ZB24510；ZB24511；ZB24518；
ZB24521；
ZB24540；ZB24542；ZB24547；ZB24548；
ZB24550；ZB24554；
ZB24571；ZB24576；ZB24578；ZB24579；
ZB24580；ZB24582；
In stock ZD series surge protector models:
ZD14612；ZD14624；ZD14648；
ZD16100；ZD16101；ZD16104；ZD16107；ZD16108；
ZD16700；ZD16701；ZD16709；ZD16900；ZD16901；
In stockTB series surge protector models:
TP24/7-G；TP24/7-G-NDI；TP24/7-I；TP24/7-I-NDI；TP24/7-N；TP24/7-N-NDI
TP48-3-G；TP48-3-G-NDI；TP48-3-I；TP48-3-I-NDI；TP48-3-N；TP48-3-N-NDI
TP48-4-G；TP48-4-G-NDI；TP48-4-I；TP48-4-I-NDI；TP48-4-N；TP48-4-N-NDI
TP48-G；TP48-G-NDI；TP48-I；TP48-I-NDI；TP48-N；TP48-N-NDITP32-G；TP32-G-NDI；
TP-ACFF-N；TP-AC420-N；TP-AC485-N；TP-ACSFF-N；TP-ACS420-N；TP-ACS485-N
