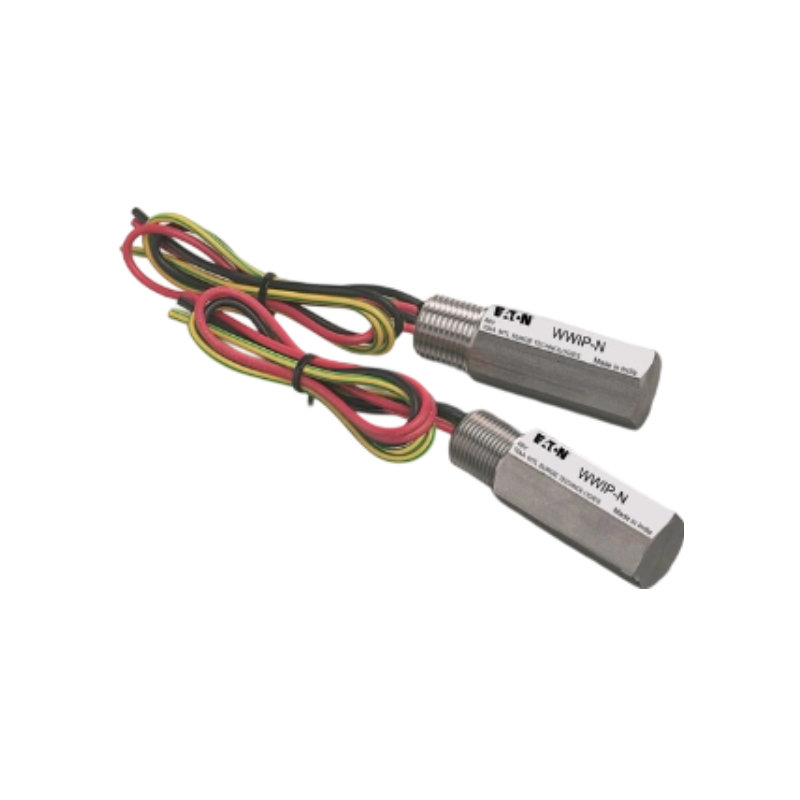

Eaton MTL WWIP-N range for 2 wire field-mounted instruments
The Crouse-Hinds series MTL WWIP-N range of surge protection devices uniquely provide a level of protection for 2 wire field-mounted instruments that is far in excess of the optional transient protection facilities available from the transmitter manufacturers - without involving any additional wiring, conduit modifications or other expensive extras.
The WWIP-N range consists of high-power, solid-state electronics and a gas-filled discharge tube (GDT) capable of diverting 10kA impulses. Specially designed for the water/wastewater industry with the whole unit encased in a corrosion resistant ANSI 316 stainless steel housing. The units are threaded for the common conduit entries used on field instruments. The WWIP-N is available for 1/2” NPT threaded entries.
Features
1.Corrosion resistant water/wastewater field instrument protection
2.Protects 2 wire instruments
3.Easy and direct mounting — screws into spare conduit entry
4.Parallel connection avoids introduction of any resistance into loop
5.High Performance low cost protection
6.10 year product warranty
7.Degree of protection: IP66
8.Operation Temperature Range: -40ºC to +85ºC
Associated Products
In stock SD series surge protector models:
SD07；SD07R；SD07R3；SD07X；
SD16；SD16R；SD16R3；SD16X；
SD32；SD32R；SD32R3；SD32T3；SD32X
SD55；SD55R；SD55R3；SD55X
SDRTD；SD150X；SD275X
In stock ZB series surge protector models:
ZB24510；ZB24511；ZB24518；
ZB24521；
ZB24540；ZB24542；ZB24547；ZB24548；
ZB24550；ZB24554；
ZB24571；ZB24576；ZB24578；ZB24579；
ZB24580；ZB24582；
In stock ZD series surge protector models:
ZD14612；ZD14624；ZD14648；
ZD16100；ZD16101；ZD16104；ZD16107；ZD16108；
ZD16700；ZD16701；ZD16709；ZD16900；ZD16901；
In stockTB series surge protector models:
TP24/7-G；TP24/7-G-NDI；TP24/7-I；TP24/7-I-NDI；TP24/7-N；TP24/7-N-NDI
TP48-3-G；TP48-3-G-NDI；TP48-3-I；TP48-3-I-NDI；TP48-3-N；TP48-3-N-NDI
TP48-4-G；TP48-4-G-NDI；TP48-4-I；TP48-4-I-NDI；TP48-4-N；TP48-4-N-NDI
TP48-G；TP48-G-NDI；TP48-I；TP48-I-NDI；TP48-N；TP48-N-NDITP32-G；TP32-G-NDI；
TP-ACFF-N；TP-AC420-N；TP-AC485-N；TP-ACSFF-N；TP-ACS420-N；TP-ACS485-N
