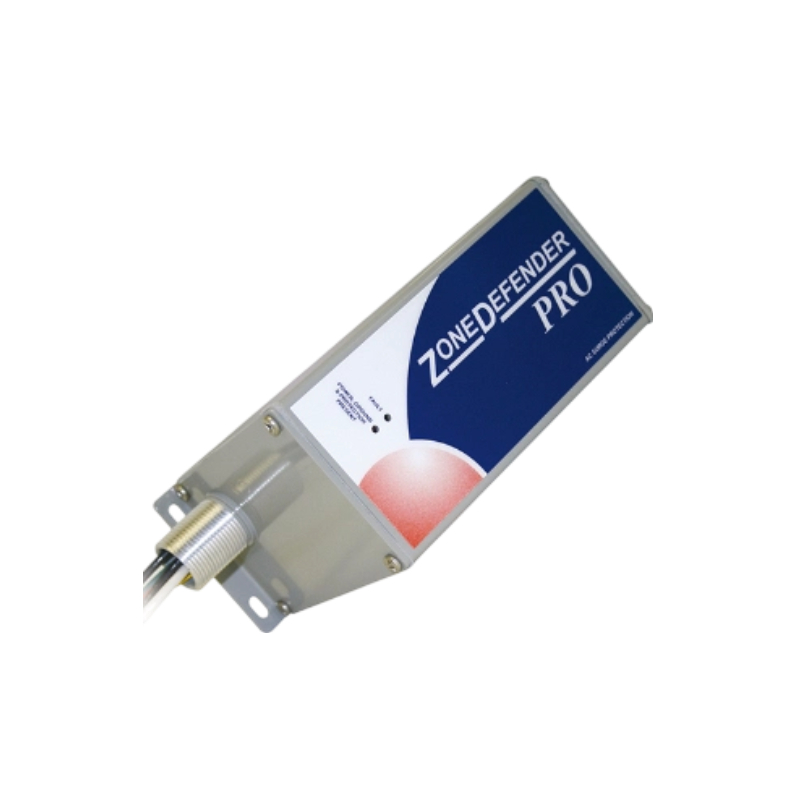

Eaton MTL Zonedefender Pro UL Type 2 compact power surge protectors
The Crouse-Hinds series MTL ZoneDefender PRO range is a versatile, high performance surge protector designed for use in a wide variety of industrial, institutional and commercial applications. The ZoneDefender PRO is the most compact, powerful, feature-rich surge protector on the market today.
State-of-the-art circuitry protects equipment from high frequency noise as well as from damaging electrical transients and high-energy disturbances. In addition, the ZoneDefender PRO range offers cost effective high capacity protection along with application versatility; features which make the range the ultimate surge protection solution.
ZoneDefender PRO units provide protection between Line to Neutral, Line to Ground, Line to Line and Neutral to Ground. Utilizing Metal Oxide Varistor (MOV) technology, the ZoneDefender PRO’s protection circuits are highly reliable, dual-redundant varistor networks ensuring your site is never unprotected. Fully automatic in operation, ZoneDefender PRO reacts immediately, clamping voltage surges without causing undue leakage losses under normal operation. No operator intervention is required, ZoneDefender PRO resets automatically and is maintenance free.
Features
1.80kA to 240kA surge current rating per phase
2.Compact size simplifies integration into custom equipment
3.Includes high-performance EMI/RFI filtering
4.LED status indication via solid state diagnostics plus remote indication contacts
5.Built-in audible alarm
6.Thermal and short circuit fusing
7.Short circuit current rating: 100k AIC
8.UL 1449 5th Edition Listed – Type 2 SPDs
9.10 year product warranty
Associated Products
In stock SD series surge protector models:
SD07；SD07R；SD07R3；SD07X；
SD16；SD16R；SD16R3；SD16X；
SD32；SD32R；SD32R3；SD32T3；SD32X
SD55；SD55R；SD55R3；SD55X
SDRTD；SD150X；SD275X
In stock ZB series surge protector models:
ZB24510；ZB24511；ZB24518；
ZB24521；
ZB24540；ZB24542；ZB24547；ZB24548；
ZB24550；ZB24554；
ZB24571；ZB24576；ZB24578；ZB24579；
ZB24580；ZB24582；
In stock ZD series surge protector models:
ZD14612；ZD14624；ZD14648；
ZD16100；ZD16101；ZD16104；ZD16107；ZD16108；
ZD16700；ZD16701；ZD16709；ZD16900；ZD16901；
In stockTB series surge protector models:
TP24/7-G；TP24/7-G-NDI；TP24/7-I；TP24/7-I-NDI；TP24/7-N；TP24/7-N-NDI
TP48-3-G；TP48-3-G-NDI；TP48-3-I；TP48-3-I-NDI；TP48-3-N；TP48-3-N-NDI
TP48-4-G；TP48-4-G-NDI；TP48-4-I；TP48-4-I-NDI；TP48-4-N；TP48-4-N-NDI
TP48-G；TP48-G-NDI；TP48-I；TP48-I-NDI；TP48-N；TP48-N-NDITP32-G；TP32-G-NDI；
TP-ACFF-N；TP-AC420-N；TP-AC485-N；TP-ACSFF-N；TP-ACS420-N；TP-ACS485-N
Pictures show
Application area
