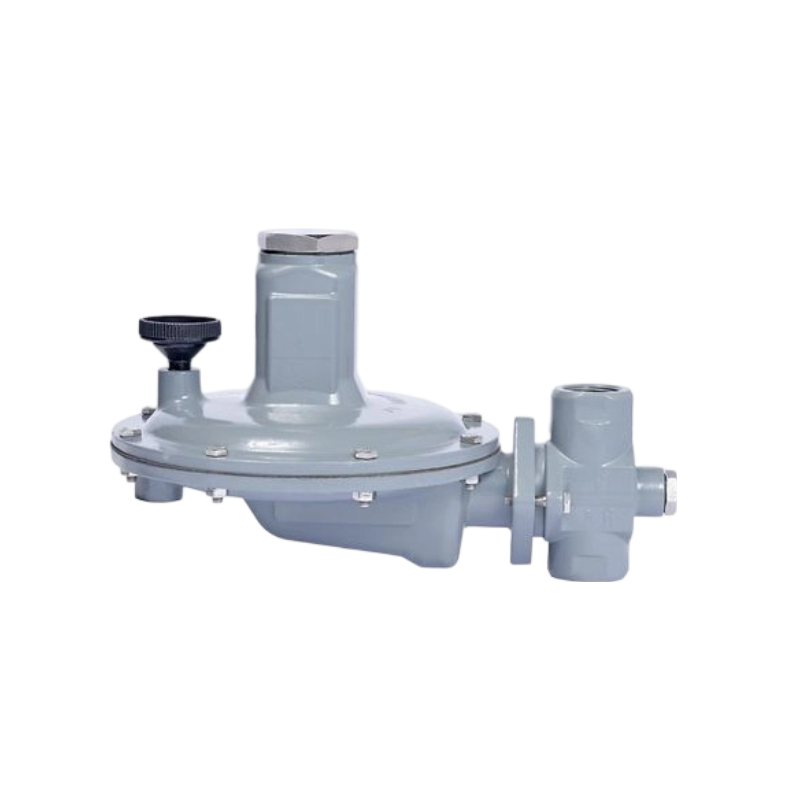

Fisher T208 Series Tank Blanketing Vapor Recovery Regulators
The T208 Series are direct-operated tank blanketing vapor recovery regulators. These regulators are used to sense an increase in vessel pressure and vent excessive internal tank pressure to an appropriate vapor recovery disposal or reclamation system. T208 Series may also be used as backpressure regulators or relief valves.
Features
1.Accurate Control
2.Easy conversion between constructions
3.Corrosion resistance
4.Arctic Construction Option
5.FDA/USP Class VI Approved/ADI-free Construction Option
Specifications
Body Sizes | 3/4 or 1-inch / DN 20 or 25 |
Maximum Allowable Inlet (Casing) Pressure | Gray Cast Iron: 35 psig / 2.4 bar WCC Carbon Steel, LCC Carbon Steel or CF8M/CF3M Stainless Steel: 75 psig / 5.2 bar |
Maximum Outlet Pressure | 35 psig / 2.4 bar |
Max Emergency Inlet Pressure to Avoid Internal Parts Damage | NBR or FKM diaphragm: 35 psig / 2.4 bar FEP diaphragm: 10 psig / 0.7 bar |
Standard Temperature Capabilities | NBR: -20 to 180°F / -29 to 82°C FEP: -20 to 180°F / -29 to 82°C EPDM: -20 to 225°F / -29 to 107°C |
High Temperature Capabilities | FKM: 40 to 300°F / 4 to 149°C FFKM: 0 to 300°F / -18 to 149°C |
Spring Case Vent Connection | 1/4 NPT |
Diaphragm Case Control Line Connection (Type T208M) | 1/2 NPT |
Approximate Weight | 17.7 pounds / 8 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
