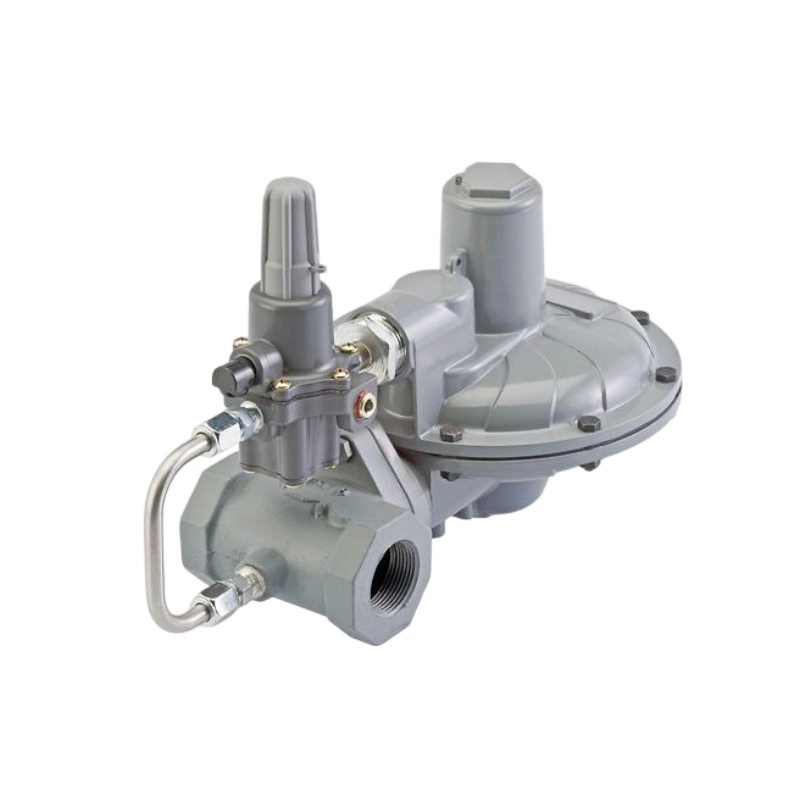

Fisher CP400 Series Pressure Loaded Pressure Reducing Regulators
Fisher CP400 Series pressure loaded regulators provide pressure-reducing applications for light industrial and commercial installations, which include accurate control for use in pressure-factor measurement (fixed factor billing) applications. Options include numerous body end connection sizes, body materials, outlet pressure settings, orifice sizes, internal/external pressure registration, and overpressure protection.
Features
1.Wide Variety of Body Sizes and End Connections
2.Fixed Factor / Pressure Factor Measurement (PFM) Accuracy Capabilities
3.Field Convertible from Internal Sensing for Wide-Open Monitor Construction
4.Multiple Overpressure Protection Options
5.Available in Gray Cast Iron, Ductile Iron, and Steel Body Materials
6.Only Standard Tools Required for Pressure Adjustment and Orifice Removal
7.Easy to Maintain
Specifications
Available Configurations | Stand-Alone Regulator, Non-Relief, Token Relief, Internal or External Pressure Registration, Integral True-Monitor, VSX4 Slam-Shut Module |
Body Sizes and End Connection Styles | Gray CI (Gray Cast Iron):1-1/4, 1-1/2, 2 NPT; NPS 2 / DN 50, CL125 FF DI (Ductile Iron):1-1/4, 1-1/2, 2 NPT; Rp 1-1/4, 1-1/2, 2; NPS 2 / DN 50, CL125 FF / CL150 FF, PN 10/16 ST (Steel):1-1/4, 1-1/2 NPT; Rp 1-1/4, 1-1/2 |
Maximum Operating Inlet Pressure | 125 psig / 8.6 bar |
Outlet Pressure Range | 1 to 20 psig / 0.07 to 1.4 bar |
Maximum Emergency Outlet Pressure (Casing) | 25.0 psig / 1.7 bar |
Maximum Outlet Pressure to Avoid Internal Parts Damage | 5 psig / 0.34 bar over set point |
Maximum Operating Outlet Pressure | 20.0 psig / 1.4 bar |
Pressure Registration | Internal or External |
Temperature Capabilities | -20 to 150°F / -29 to 66°C |
Approximate Weights | With Threaded Body:Type CP400: 11 Pounds / 5 kg Type CP403: 20.5 Pounds / 9 kg Type CP404: 13.2 Pounds / 6 kg With Flanged Body: Add 8.6 Pounds / 4 kg to weights listed |
Type TM600 True-Monitor™ Specifications | Control Press: 1-7.5 psig / 0.07-0.52 bar Max Op Outlet Pressure (TM600 Installed CP403): 7.5 psig / 0.52 bar Connections: Slam-Shut Vent 1/4 NPT; Ext Sensing Line 1/4 NPT Casing Material: AL Press Reg: External |
Type VSX4 Slam-Shut Module Specifications | OPSO Only: 2-43.5 psi / 0.14-3.0 bar OPSO/UPSO: - OPSO: 2.2-29 psi / 0.15-2 bar - UPSO: 0.36-29 psi / 0.03-2.0 bar Vent: 1/4 NPT Ext Sense: 1/4 NPT Case Material: AL Press Reg: Int or Ext |
