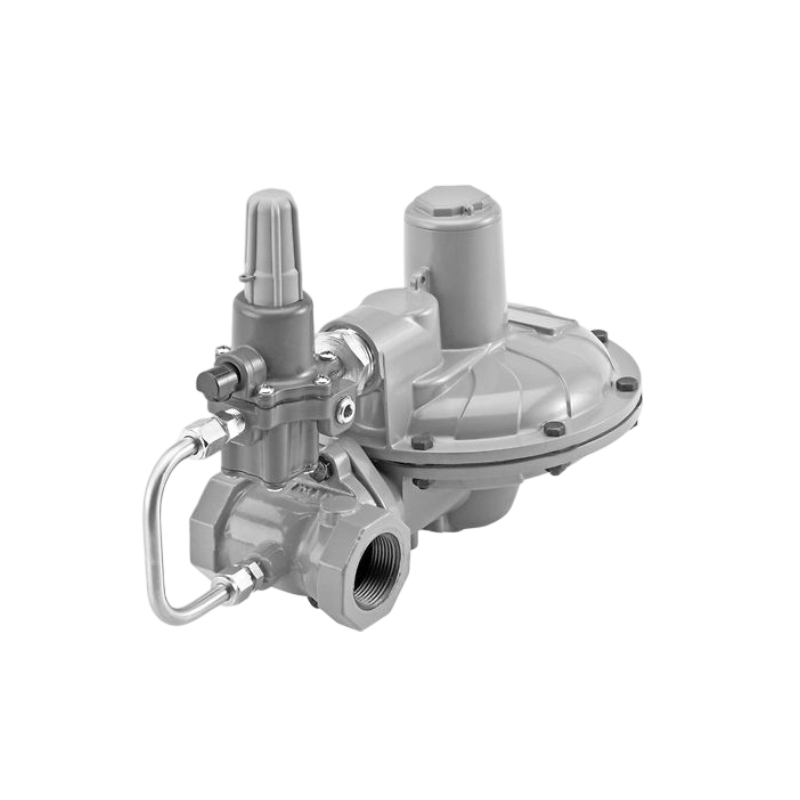

Fisher CP200 Series Pressure-Loaded Pressure Reducing Regulators
Fisher CP200 Series pressure-loaded regulators have been engineered to fit a multitude of pressure-reducing applications including commercial and institutional installations. This flexibility is provided by the numerous body end connection sizes, outlet pressure settings, and orifice sizes. CP200 Series provides accurate control use in pressure-factor measurement (fixed-factor billing) applications.
Features
1.Wide Range of NPT Body Sizes
2.Easy to Install and Maintain
3.Only Standard Tools Required for Pressure Adjustment and Orifice Removal
Specifications
Available Configurations | Stand-Alone Regulator, Non-Relief, Token Relief, Internal Pressure Registration, Secondary Seat |
Body Sizes and End Connection Styles | 3/4 NPT, 3/4 x 1 NPT, 3/4 x 1-1/4 NPT, 1 NPT, 1 x 1-1/4 NPT, 1-1/4 NPT |
Maximum Inlet Pressure | 175 psig / 12.1 bar |
Maximum Outlet Pressure | Emergency Casing: 25 psig / 1.7 bar Allowable without Parts Damage: 25 psig / 1.7 bar Operating: 20 psig / 1.4 bar |
Outlet Pressure Range | 1 to 20 psig / 0.07 to 1.4 bar |
Temperature Capabilities | -20° to 150°F / -29° to 66°C |
Approximate Weight | 10 Pounds / 5 kg |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
