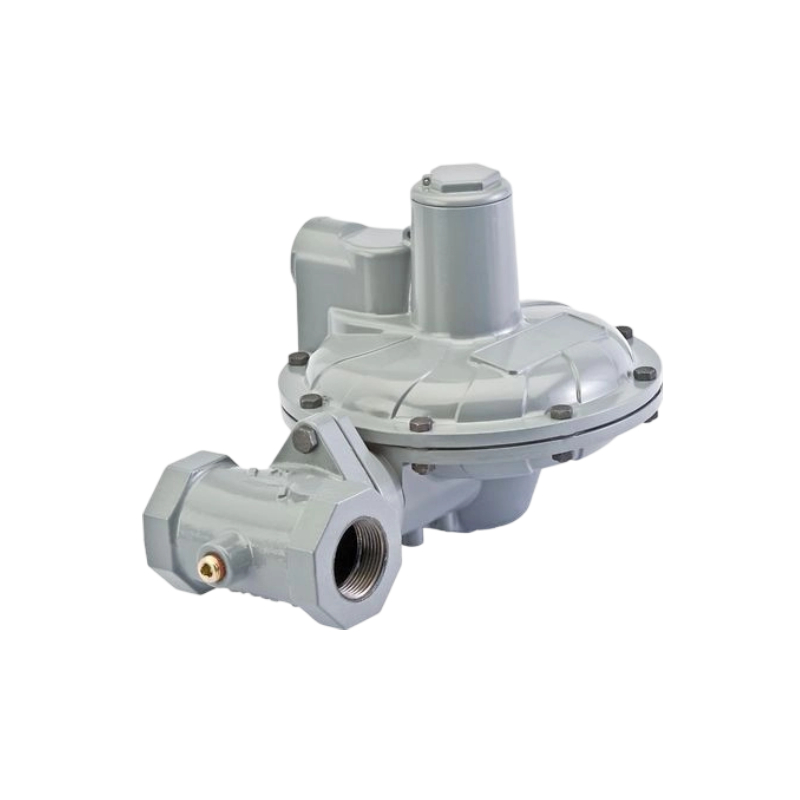

Fisher CSB400 Pressure Reducing Regulators
Fisher CSB400 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. This flexibility is provided by the numerous body sizes and end connections, outlet pressure settings, as well as the option for internal, external, or dual pressure registration. In addition to application flexibility, the CSB400 Series offers multiple overpressure protection options to meet your demands on application requirements.
Features
1.Integral True-Monitor
2.Slam-shut
3.Ductile Cast Iron and WCC Steel Bodies Available
4.Wide Variety of Body Sizes and End Connections
5.No Special Tools for Pressure Adjustment and Orifice Removal
Specifications
Available Configurations | Stand-Alone Regulator, Non-Relief, Token Relief, Dual Pressure Registration, Internal or External Pressure Registration, Integral True-Monitor, VSX4 Slam-Shut Module |
Body Sizes and End Connection Styles | DI (Ductile Iron):1, 1-1/4, 1-1/2, 2 NPT; Rp 1, 1x1-1/4, 1-1/4, 1-1/2, 2, Rp 1x2-1/4 GAZ; NPS 1-1/2/DN40, PN16; NPS2/DN50, CL125 FF, CL150 FF, PN10/16 ST (Steel):1, 1-1/4, 1-1/2 NPT; Rp 1, 1-1/4, 1-1/2 |
Maximum Operating Inlet Pressure | 16 bar / 232 psig |
Maximum Emergency Inlet Pressure | 20 bar / 290 psig |
Outlet Pressure Range | 17 mbar to 3.0 bar / 6.8-inches w.c. to 43.5 psig |
Maximum Emergency Outlet Pressure (Casing) | 4.0 bar / 58 psig |
Maximum Outlet Pressure (Avoid Internal Parts Damage) | 0.35 bar / 5.0 psig above outlet pressure setting |
Maximum Operating Outlet Pressure | 3.0 bar / 43.5 psig |
Pressure Registration | Internal or External |
Temperature Capabilities | According to PED Standards: -20 to 60°C / -4 to 140°F Non-PED: -30 to 66°C / -20 to 150°F |
Approximate Weights | Threaded Body: Type CSB400: 4 kg / 9 Pounds Type CSB403: 9 kg / 20 Pounds Type CSB404: 5 kg / 11 Pounds Flanged Body: Add 4 kg / 9 Pounds to weights listed |
Type TM600 True-Monitor™ Specifications | Control Press: 27-517 mbar / 11 wc-7.5 psi Max Op Outlet Press (TM600 on CSB403): 517 mbar / 7.5 psi Vent: 1/4 NPT Ext Sense: 1/4 NPT Case Material: AL Press Reg: Ext |
Type VSX4 Slam-Shut Module Specifications | OPSO: 43-3400 mbar / 0.62-49.3 psi UPSO: 10-1500 mbar / 0.15-21.8 psig Vent: 1/4 NPT Ext Sense: 1/4 NPT Case Material: AL Press Reg: Int or Ext |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
