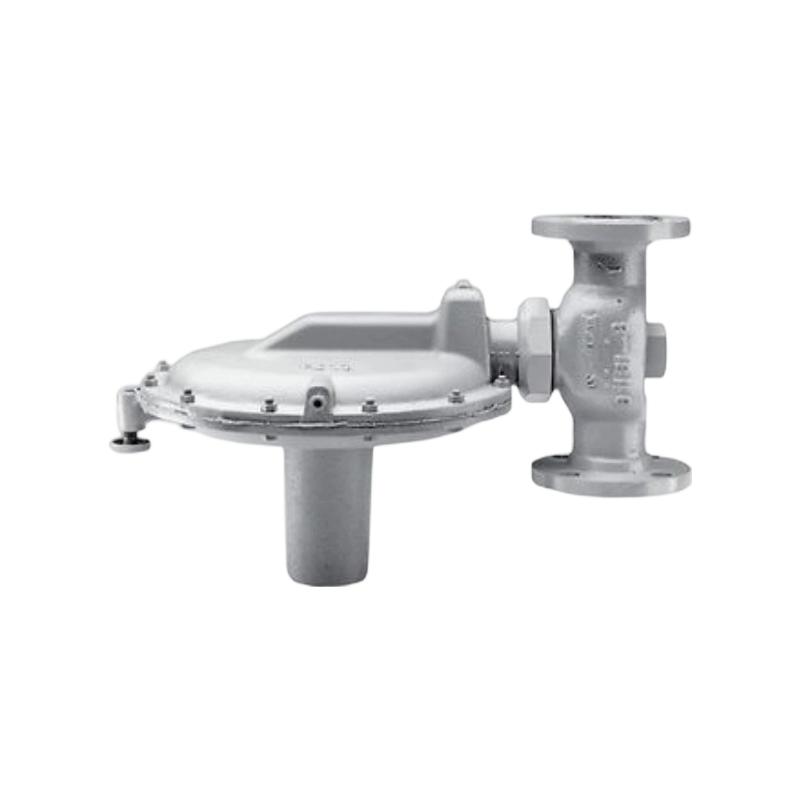

Fisher Type Y696 Vapor Recovery Regulator
Type Y696 is a direct-operated vapor recovery regulator with internal registration, requiring no downstream control line. This regulator is used to sense an increase vessel pressure and vent excessive internal tank pressure to an appropriate vapor recovery disposal or reclamation system.
Features
1.Ease of Inspection and Maintenance
2.Precise Control
3.Rugged Construction
4.Simplicity
5.Variety of Construction Materials
Specifications
Body Sizes | NPS 1-1/2 and 2 / DN 40 or 50 |
Materials and End Connections | Cast Iron: NPT Steel or Stainless Steel: NPT, SWE, CL150 RF, CL300 or PN 16/25/40 Hastelloy C: CL150 RF |
Maximum Inlet Pressure | 15 psig / 1.0 bar |
Pressure Registration | Internal |
Temperature Capabilities | NBR: -20° to 180°F / -29° to 82°C FKM: 40° to 300°F / 4° to 149°C FFKM: 0° to 300°F / -18° to 149°C EPDM: -20° to 275°F / -29° to 135°C |
Approximate Weights | Cast Iron: 45 Pounds / 20 kg Steel and Stainless Steel: 57 Pounds / 26 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
