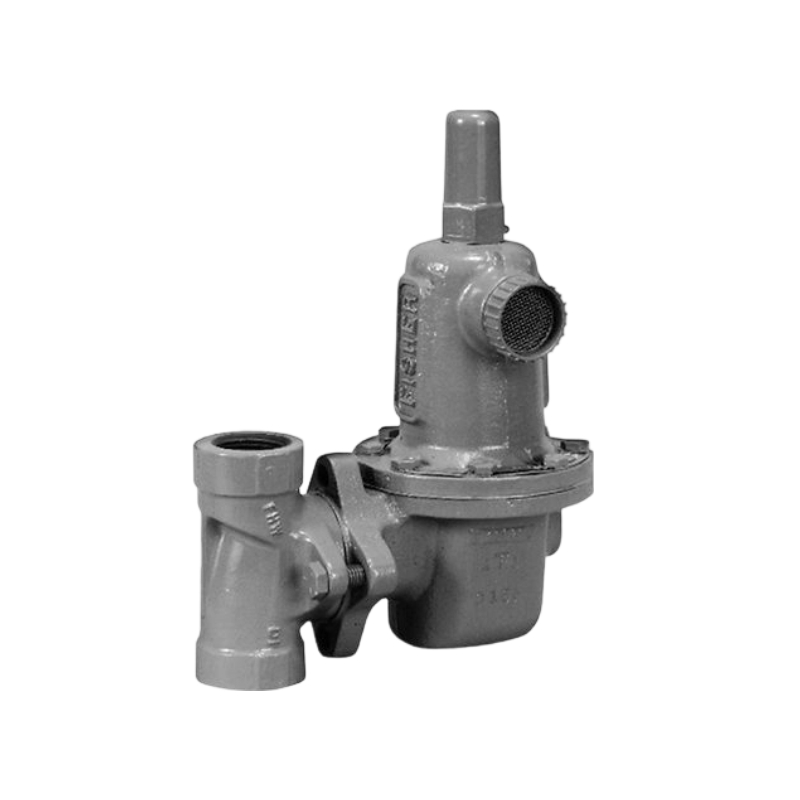

Fisher Types 627W & WH Series Pressure Reducing Regulators
Fisher Types 627W and 627WH pressure reducing regulators are direct-operated for liquid service. They are available in NPS 3/4, 1, and 2 / DN 20, 25, and 50 body sizes and in construction materials to match liquid applications.
Features
1.In-Line Maintenance
2.Tight Shutoff Capability
3.Versatility
4.Rugged Construction
5.Stainless Steel Construction
Specifications
Body Sizes and End Connection Styles | NPT: 3/4, 1, or 2 CL150, CL300, or CL600 RF Flanged: NPS 1 or 2 / DN 25 or 50 PN 16, 25, or 40: NPS 1 or 2 / DN 25 or 50 |
Maximum Inlet Pressure | Type 627W: 550 psig / 37.9 bar with Nylon Disk, or 350 psig / 24.1 bar with Elastomer Disk Type 627WH: 900 psig / 62.1 bar with Nylon Disk, or 700 psig / 48.3 bar with Elastomer Disk |
Maximum Outlet (Casing) Pressure | Type 627W: - Ductile Iron: 465 psig / 32.0 bar - Steel or Stainless Steel: 1500 psig / 103 bar Type 627WH: - Steel or Stainless Steel: 1500 psig / 103 bar |
Outlet Pressure Ranges | Type 627W: 10 to 150 psig / 0.69 to 10.3 bar in four ranges Type 627WH: 140 to 500 psig / 9.7 to 34.5 bar in two ranges |
Pressure Registration | Internal or External |
Temperature Capabilities | -40° to 400°F / -40° to 204°C |
Approximate Weights | Ductile Iron or Steel Casings: 10 pounds / 5 kg |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
