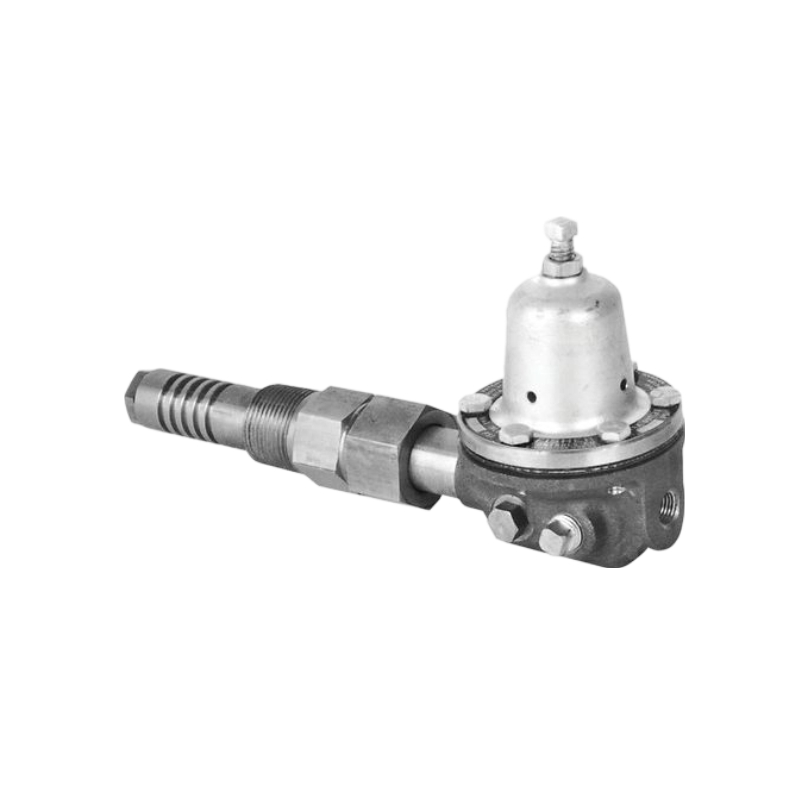

Fisher 1305 Series Pressure Reducing Regulators
1305 Series regulators are direct-operated, pressure reducing regulators that resist hydrate formation and regulator freeze-up typically used on high-pressure lines from wellheads and separators. These regulators are suitable for service with natural gas, air, propane, and other gases.
Features
1.Resists Hydrate Formation and Regulator Freeze-up
2.Durable
3.Ease of Maintenance
4.High Pressure Capabilities
5.NACE Construction Available
Specifications
Body Size and End Connection Style | Inlet: 1 NPT Outlet: 1/4 NPT |
Maximum Inlet Pressure | 4000 psig / 276 bar |
Maximum Outlet (Casing) Pressure | Type 1305C: 250 psig / 17.2 bar Type 1305D: 550 psig / 37.9 bar |
Outlet Pressure Ranges | Type 1305C: 1 to 75 psig / 0.069 to 5.2 bar, 5 to 150 psig / 0.34 to 10.3 bar, 10 to 225 psig / 0.69 to 15.5 bar Type 1305D: 200 to 500 psig / 13.8 to 34.5 bar |
Pressure Registration | Internal |
Temperature Capabilities | -20 to 200°F / -29 to 93°C |
Approximate Weight | 6 Pounds / 3 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
