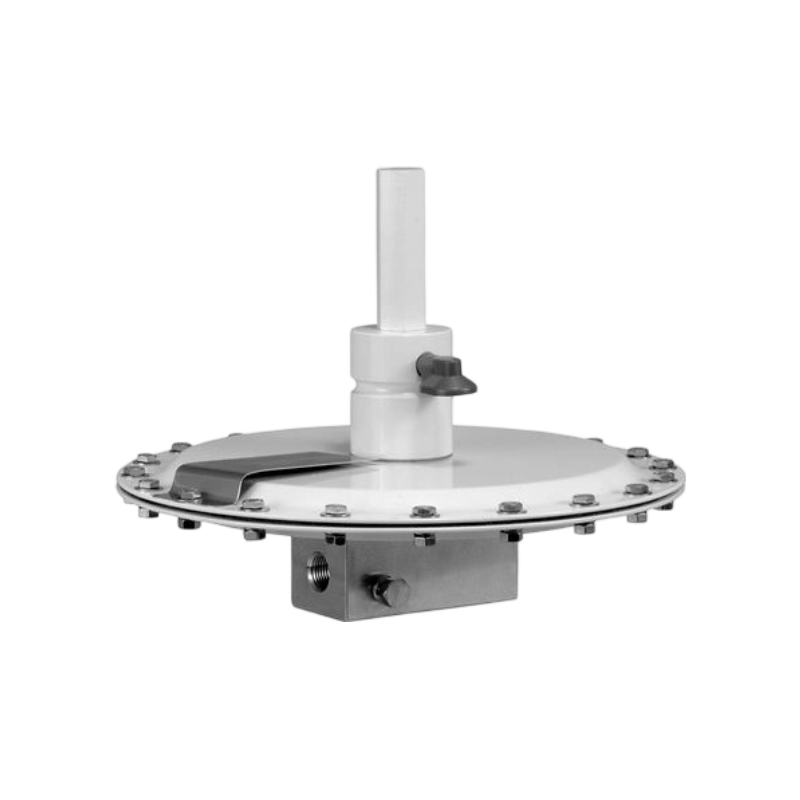

Fisher Type ACE95Jr Tank Blanketing Valve
Type ACE95Jr is a direct-operated valve used for accurate pressure control on low-pressure blanketing systems. The unit is stainless steel, and actuated by a large diaphragm actuator. The oversized actuator offers high sensitivity to changes in tank pressure, increasing accuracy.
Features
1.Fully Balanced Pilot Design Reduces Inlet Pressure Sensitivity
2.Frictionless Pilot Valve
3.Bubble Tight Shutoff
4.Pilot Controlled
5.Angled or In-Line Body Option
6.Highly Sensitive
7.Diagnostics Available
8.Vacuum Settings Available
9.Sanitary FDA/ADI-free Elastomers Available
Specifications
Sizes and End Connection Styles | 1/2 NPT 1 x 1/2 NPT 1 NPT NPS 1/2 / DN 15, CL150 RF NPS 1 / DN 25, CL150 RF NPS 1 x 1/2 / DN 25 x 15, CL150 RF NPS 1 / DN 25, Sanitary Flange |
Maximum Inlet Pressure | 200 psig / 13.8 bar |
Outlet Pressure Ranges | -5 inch w.c. to 1.5 psig / -12 to 103 mbar in six ranges |
Pressure Registration | External |
Temperature Capabilities | NBR: -20° to 180°F / -29° to 82°C FKM: 0° to 212°F / -18° to 100°C EPDM - FDA: -40° to 212°F / -40° to 100°C FFKM: -20° to 212°F / -29° to 100°C |
Approximate Weight | 30 Pounds / 14 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
