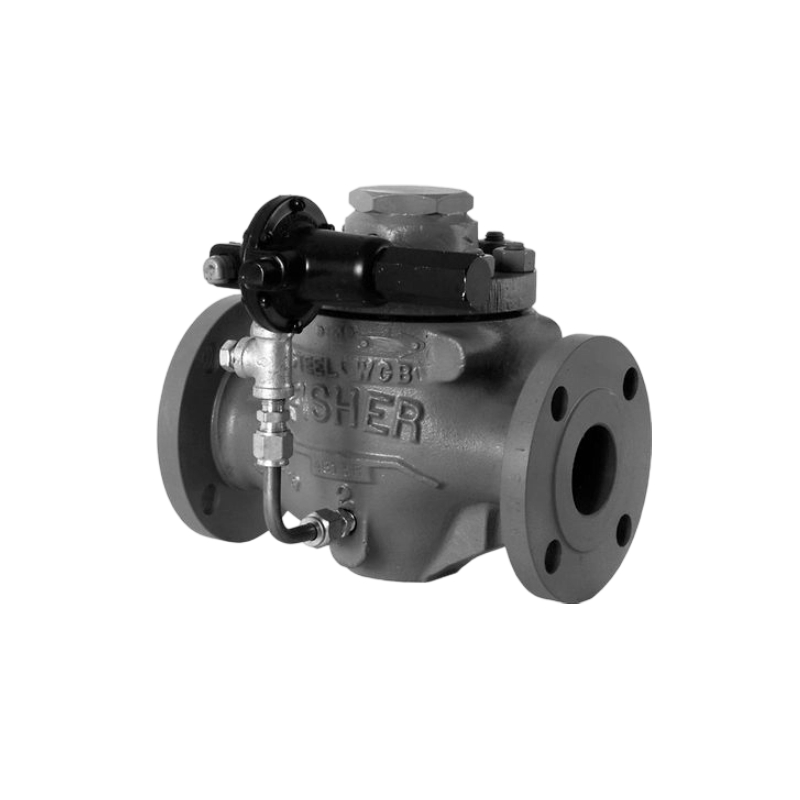

Fisher 6350 and 6360 Series Pilot
Fisher 6350 or 6360 Series pilots are used with one of several different main valves in pressure reducing, pressure relief, or backpressure applications. All of these pilots can be used in gas service, all except the Type 6351 pilot can be used in liquid service.
Features
1.Easy Valve Plug Maintenance
2.Adjustable Gain for Tunable Performance
Specifications
Connections | 1/4 NPT Female |
Maximum Inlet Pressure | Types 6351, 6352, 6353, 6354L, 6354M, and 6354H: 600 psig / 41.4 bar Type 6358: 150 psig / 10.3 bar Type 6365: 50 to 360 psig / 3.4 to 24.8 bar |
Outlet (Control) Pressure Range | Types 6351, 6352, 6353, and 6354L: 3 to 200 psig / 0.21 to 13.8 bar Types 6354M and 6354H: 175 to 300 psig / 12.1 to 20.7 bar |
Temperature Capabilities | Standard Elastomers: -20° to 150°F / -29° to 66°C High Temperature Elastomers: 0° to 300°F / -18° to 149°C, except 0° to 180°F / -18° to 82°C for water service |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
