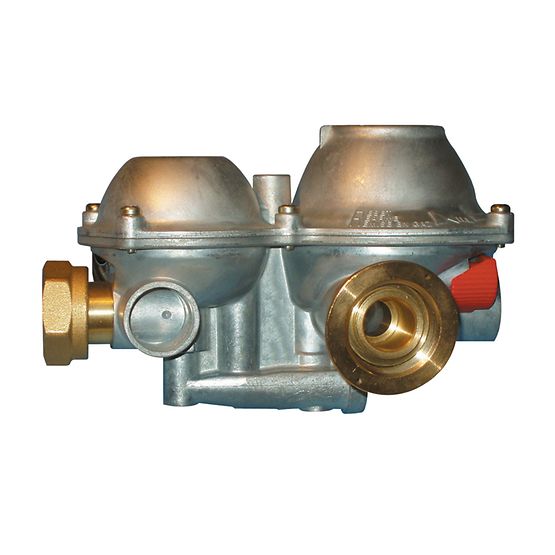

Fisher Type B NG Residential Regulators
Type B NG residential regulator is a direct-action, spring-loaded regulator, with high performance and reinforced safety features. It provides pressure reducing control in a variety of residential, commercial and industrial applications for a variety of gaseous fluids. A shut-off valve cuts off the gas flow in the case of excessive flow, or when the outlet pressure drops below the set point (high gas demand or broken line) or in the case of inlet pressure dropping below the set point (network pressure drop or pipe damage). The regulator can be manually reset after the safety function trips. The regulator is factory preset. Type B6 NG is interchangeable with the current angle-shaped Type B6 N (same key dimensions).
Features
1.Reinforced Integration
2.Two Stages of Reduction for Constant Outlet Pressures
3.Compact Design
4.Internal Relief
5.Inlet Strainer
Specifications
Body Size | NPS 3/4 x 1-1/4 / DN 20 x 32 |
Inlet Pressure Range | 7.25 to 72.5 psig / 0.50 to 5.0 bar 1.45 to 102 psig / 0.10 to 7.0 bar (on request) |
Maximum Inlet Pressure | 72.5 psig / 5.0 bar |
Outlet Pressure Range | 3.6 to 20-inches w.c. / 9 to 50 mbar |
Maximum Outlet Pressure | 20-inches w.c. / 50 mbar |
Pressure Registration | Internal |
Approximate Weight | 2.16 to 2.21 Pounds / 0.9 to 1 kg |
Temperature Capabilities | -4° to 140°F / -20° to 60°C -22° to 140°F / -30° to 60°C (on request) |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
Associated Products
FISHER Self-Operated Pressure Reducing Valve MR95 series
MR95HP-HA1AA, MR95HP-HA1AAL
MR95HP-HA3AA, MR95HP-HA3AAL
MR95HP-HB1AB, MR95HP-HB1ABL
MR95HP-HB3AB, MR95HP-HB3ABL
MR95HP-HC1AC, MR95HP-HC1ACL
MR95HP-HC3AC, MR95HP-HC3ACL
MR95HP-HD1AC, MR95HP-HD1ACL
MR95HP-HD3AC, MR95HP-HD3ACL
FISHER Regulator/Pressure Reducing Valve 167DA Series
1/4NPT Port
167DA-15: 14-20psig/7-20psig
167DA-16: 16-35psig/10-30psig
167DA-13: 25-60psig/25-50psig
167DA-85: 40-125psig/40-90psig
1/2NPT Port
167DA-9: 14-20psig/7-20psig
167DA-10: 16-35psig/10-30psig
167DA-11: 25-60psig/25-50psig
167DA-81: 40-125psig/40-90psig
67CFR Regulator/Pressure Reducing Valve Series
0-20psi
67CFR-585, 67CFR-260
0-35psi
67CFR-224, 67CFR-581, 67CFR-362, 67CFR-584, 67CFR-579, 67CFR-235, 67CFR-241, 67CFR-206, 67CFR-24, 67CFR-35, 67CFR-59
0-60psi
67CFR-225, 67CFR-582, 67CFR-600, 67CFR-580, 67CFR-237 (67CF-1663-38512), 67CFR-50, 67CFR-40
0-125psi
67CFR-226, 67CFR-583, 67CFR-601, 67CFR-239 (67CF-1663-38550, 1/4NPT, 0-8.6BARG/0-125PSI), 67CFR-26, 67CFR-38
67DFR Series
67DFR-23: 0-35psig
67DFR-25: 0-125psig
67DS Series
67DS-202, 67DS-2354-164422 (1/2NPT, 0-125psi)
627 Series
627-499/627-1217-29863, 627-577/627-1217-30000
Other models
67DA Series, 67CFR Series, 67c Series, MR98 Series, 1301 Series, 627 Series, 67D Series, 63EG Series, 92B Series, 92S Series, SR5, 92C, MR95 Series, T205 Series, T205B, T208 Series, Y692, 1190, Y693, 1290, ACE95 Series, MR105, MR108, 92W, 63EG-98HM, LR125, LR128, 1098EGR, 75A, T205VB Series, 310A, Y600A Series, 133 Series
