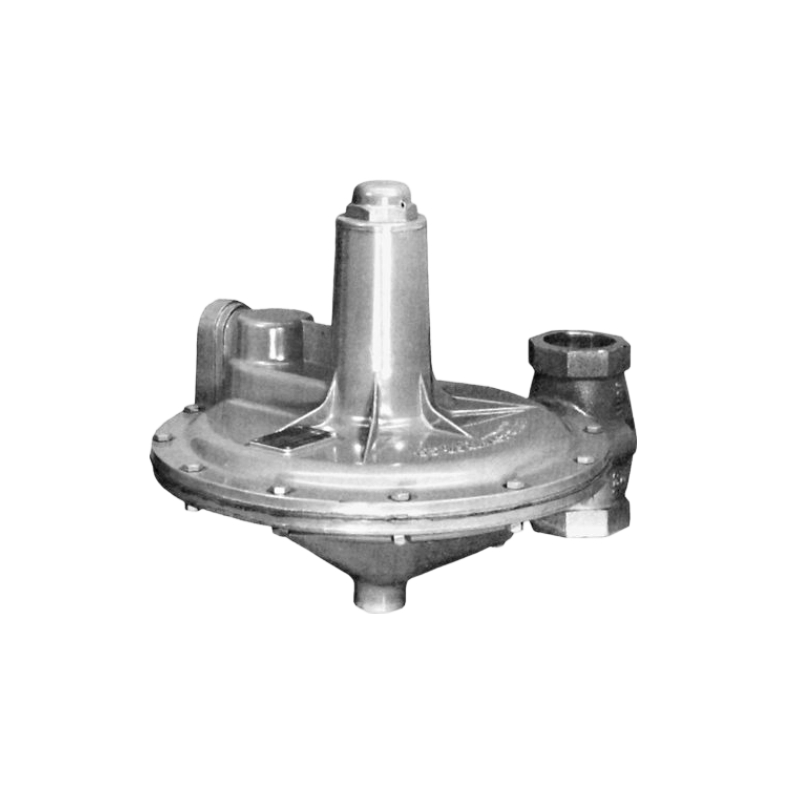

Fisher Y610A, Y611A, and Y612A Series Vacuum Service Equipment and Relief Valves
Y610A, Y611A, and Y612A Series devices are used in a wide variety of vacuum and relief service applications.Y610A Series devices are used as vacuum breakers, the Y611A Series devices are used as either vacuum breakers or relief valves, and the Y612A Series devices are used as vacuum regulators.
Features
1.Precision Control of Low Pressure Setting
2.Corrosion Resistance
3.Tamper-Resistant Adjustment
4.Rugged Construction
Specifications
Body Sizes (Inlet x Outlet) and End Connection Styles | Type Y610A, Y610AP, Y611A, Y611AP, Y612A or Y612AP: NPS 1-1/2 x 1-1/2, 2 x 2, NPT Or NPS 2 x 2 / DN 50 x 50 CL125A FF or CL250A RF Flanged |
Maximum Inlet Pressure | 0.25 to 3 psig / 17 to 207 mbar |
Maximum Outlet Pressure (Casing) | 0.25 to 3 psig / 17 to 207 mbar |
Temperature Capabilities | -20° to 150°F / -29° to 66°C |
Pressure Registration | Type Y610A, Y611A, or Y612A: Internal Types Y610AP, Y611AP, and Y612AP: External |
Approximate Weights | NPS 1-1/2 x 1-1/2: 25 pounds / 11 kg NPS 2 x 2 / DN 50 x 50: 30 pounds / 14 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
