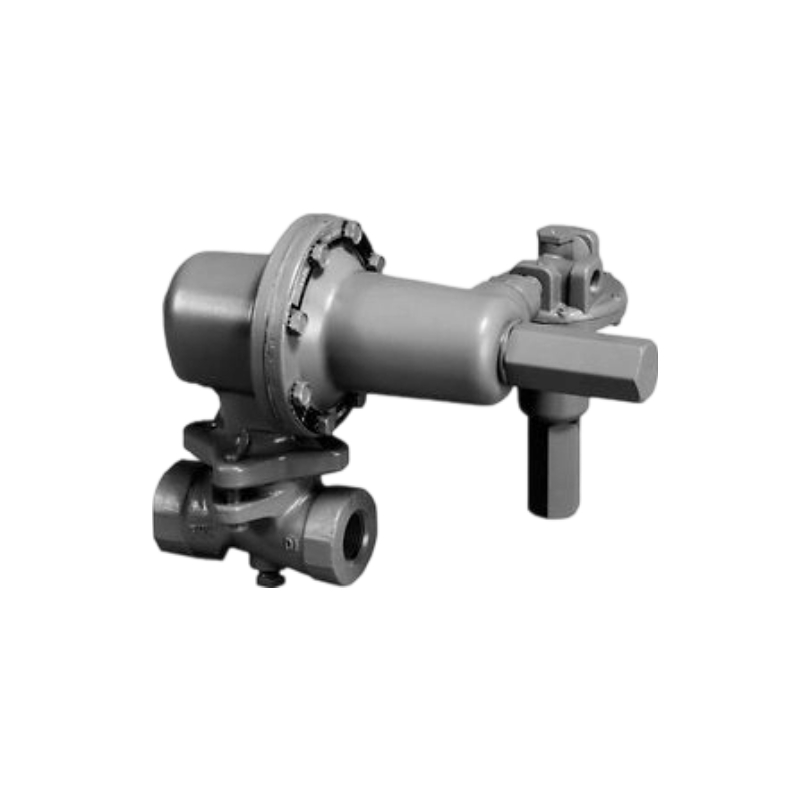

Fisher Type 627F Series Pressure Reducing Regulators
Type 627F pilot-operated pressure reducing regulator provides superior performance when used in pressure factor measurement (fixed-factor billing) applications.?Type 627F includes a factory-installed Type 6351F pilot and has external registration that requires a downstream control line.
Features
1.Accurate for Pressure-Factor Measurement
2.Applications
3.Easy to Maintain
4.Installation Adaptability
5.Tamper-Resistant
6.Wide Range of Flow Capabilities
7.Tight Shutoff Capability
Specifications
Body Sizes and End Connection Styles | Ductile Iron: 3/4, 1 or 2 NPT Steel: NPS 1 or 2 / DN 25 or 50 CL150 RF; NPS 1 or 2 / DN 25 or 50 PN 16/25/40 RF |
Outlet Pressure Range | 5 to 100 psig / 0.35 to 6.9 bar in two ranges |
Pressure Registration | External |
Temperature Capabilities | -20° to 180°F / -29° to 82°C |
Approximate Weights | NPT body w/DI or ST casings: 10 Pounds / 4.5 kg NPT body w/AL casings: 6.3 Pounds / 2.9 kg Flanged body w/ST casings: 18 Pounds / 8.2 kg Flanged body w/DI casings: 14 Pounds / 6.4 kg |
