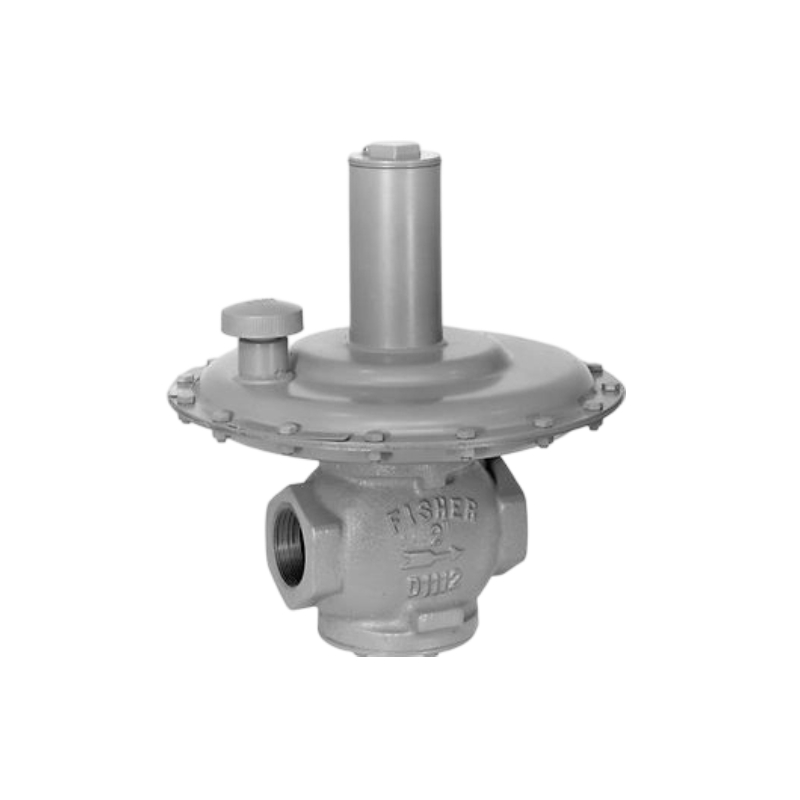

Fisher 66 Series Direct-Operated Regulators and Vacuum Service Equipment
66 Series direct-operated pressure-reducing regulators are widely used in burner control, tank blanketing systems, and other applications where precise control of low-pressure industrial gases is needed, while 66 Series direct-operated vacuum service equipment comes in both vacuum regulator and vacuum breaker constructions.
Features
1.Sensitive Response to Pressure Changes
2.Seat Protection without Sacrifice in Shutoff Capability
3.Tank Blanketing Capability
4.Accuracy
5.Application Flexibility
Specifications
Body Sizes and End Connection Styles | Body Sizes: NPS 2, 3 or 4 / DN 50, 80 or 100 Cast Iron Body: NPT or CL125 FF Steel Body: NPT, CL150 RF, CL150 FF, CL300 RF |
Emergency Inlet Pressure | Type 66, 66Z, 66ZZ or 66 Series Vacuum Breakers: 25 psig / 1.7 bar positive pressure 66 Series Vacuum Regulators: 8 psig or 16.3-inches of mercury / 0.55 bar differential vacuum |
Maximum Inlet Pressure to Avoid Internal Parts Damage | Type 66: 10 psig / 0.69 bar Type 66Z: 5 psig / 0.34 bar Type 66ZZ: 2 psig / 0.14 bar |
Recommended Inlet Pressure | Type 66, 66Z or 66 Series Vacuum Breakers: 5 psig / 0.34 bar positive pressure Type 66Z: 2 psig / 0.14 bar 66 Series Vacuum Regulator: 6-in w.c. or 0.4-in of mercury / 15 mbar differential vacuum |
Emergency Outlet (Casing) Pressure | Type 66, 66Z or 66ZZ: 8 psig / 0.55 bar positive pressure 66 Series VR: 14.7 psi or 29.9-in of mercury / 1.01 bar differential vac 66 Series VB: 8 psi or 16.3-in of mercury / 0.55 bar differential vac |
Maximum Safe Pressure to Avoid Internal Parts Damage | Type 66, 66Z or 66ZZ: 1 psig / 0.07 bar differential above outlet pressure setting 66 Series Vacuum Regulator: No more than 1 psig / 0.07 bar differential change from spring setting |
Pressure Registration | Type 66, 66Z or 66ZZ: Cast Iron Body - Internal (standard) or External; Steel Body - External (standard) or Internal 66 Series Vacuum Regulators or Breakers: External |
Temperature Capabilities | NBR: -40° to 180°F / -40° to 82°C FKM: 0° to 350°F / -18° to 177°C EPDM: -40° to 275°F / -40° to 135°C |
Approximate Weights | NPS 2 (DN 50) NPT: 50 Pounds / 23 kg NPS 3 (DN 80) Body: 100 Pounds / 45 kg NPS 4 (DN 100) Body: 155 Pounds / 70 kg |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
