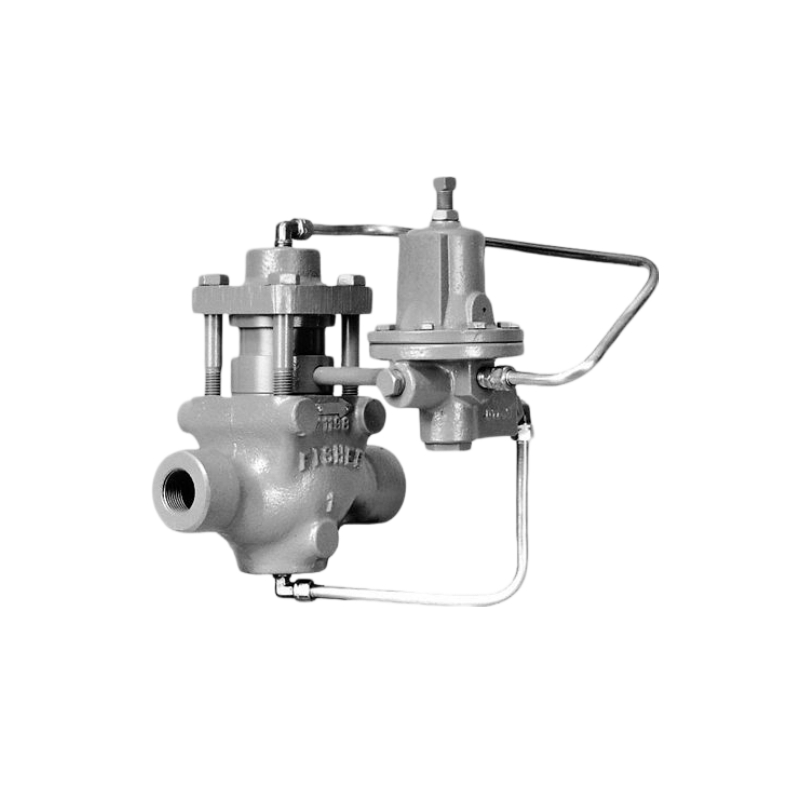

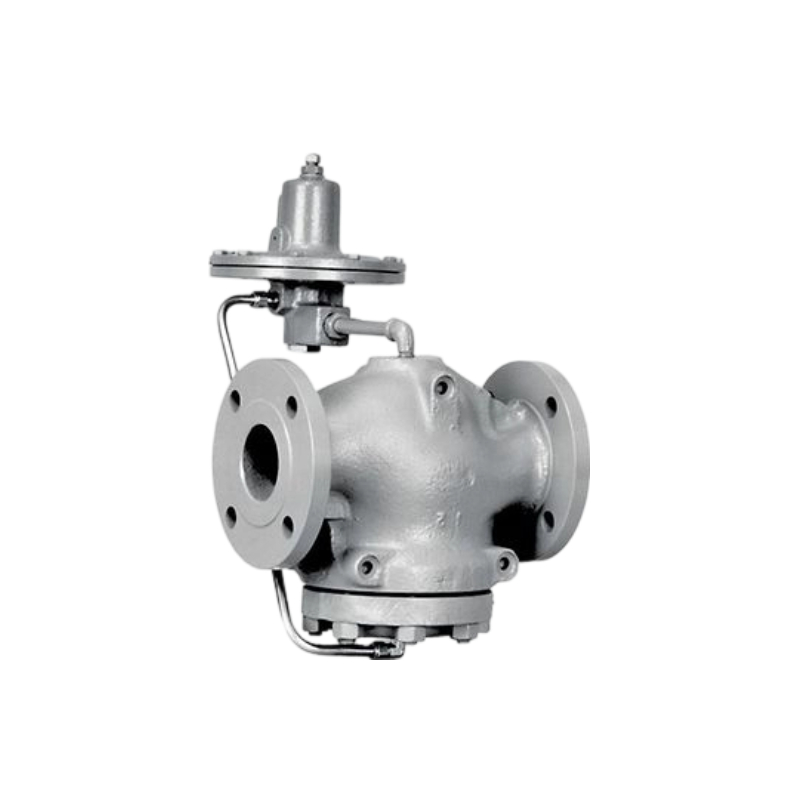

Fisher Type 92W Pressure Reducing Liquid Regulators
Fisher Type 92W pressure-reducing regulator for liquid service includes either a Type 6492H or a Type 6492L pilot. This reliable, dependable regulator uses time-proven design concepts. Pilot supply pressure is piped from the main valve inlet to the pilot inlet connection. Downstream pressure registers on the main valve pistons through the downstream control line and then on the pilot diaphragm.
Features
1.Noise Reduction Capability without Decrease in Capacity
2.Good Shutoff for Low Downstream Buildup?
3.Ease of Installation
Specifications
Maximum Temperature | Cast Iron Body: 406°F / 208°C | Steel Body: 500°F / 260°C |
Body Sizes | NPS 1 / 1.5 / 2 / 2.5 / 3 / 4 | DN 25 / 40 / 50 / 65 / 80 / 100 |
End Connections | NPT / CL125FF / CL150RF / CL250RF / CL300RF / CL600RF |
Maximum Inlet Pressure | Cast Iron: 250 PSIG / 17.2 bar | Steel: 300 PSIG / 20.7 bar | Or body rating limit, whichever is lower |
Maximum Outlet Pressure | 250 PSIG / 17.2 bar |
Spring Ranges | 2 to 250 PSIG / 0.138 to 17.2 bar |
Additional Technical Data | For additional technical information, contact your local Sales Office or refer to technical documentation. |
